Bambu Lab A1/A1 Mini Heating Element Replacement: Lazy Hack (Saves 30+ Minutes!)
Hey fellow makers! We’ve all been there—your Bambu A1/A1 Mini’s Heating Assembly craps out, and the official replacement guide has you twisting 20+ screws like it’s a full teardown. Total pain.
I’m Senior Brother, your friend in Call3D, and today I’m sharing my lazy hack for swapping the heating element (heater cartridge + ceramic heater) in half the time. No extra disassembly, no fancy tools—just a quicker way that works for anyone with basic 3D printer DIY experience.
Heads up: If you’re new to taking apart printers? Stick with Bambu’s official steps. This is a shortcut, not a beginner-friendly workaround. But if you’ve messed with hotends before? Let’s save you some frustration.
Prep Work: Tools & Safety (Non-Negotiables!)
Skip the guesswork—here’s exactly what you need (all easy to find on Amazon or Home Depot):
• Hex key set (metric): Ditch the cheap OEM one! Grab a quality set like Wiha or Bondhus (size 2mm & 2.5mm—those are the only ones you’ll need). Stripping a screw mid-repair is a nightmare—don’t risk it.
• Small container (pill bottle works!): For screws—you’ll only remove 7, but losing one will derail your whole project.
• Needle-nose pliers: Optional, but lifesavers if your hotend is stuck (spoiler: it probably will be).
Critical safety rule: UNPLUG THE PRINTER BEFORE TOUCHING ANY WIRES. Electrical components + live current = bad news. Also, unload filament now—you can’t heat the nozzle to retract it once the heating element is out.
Removal: The Lazy Way (7 Screws Max!)
The official guide has you tearing apart half the printer—we’re cutting that out.
1. Pop Off the Front Cover & Hotend
• Remove the front plastic cover (snaps off gently—no screws here).
• Detach the hotend: If it’s stuck (common if you haven’t removed it in months), grab needle-nose pliers to clamp the metal body (don’t squeeze too hard!). Wiggle with your other hand—yes, you’ll need to pull firmly, but it’ll pop loose.

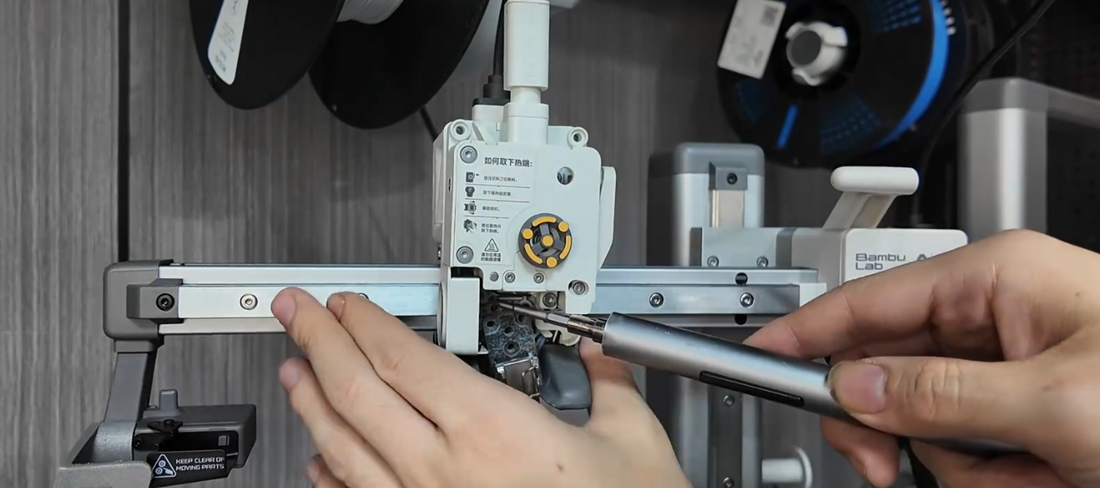

2. Remove 7 Front Panel Screws
Count ’em as you go: 2 on top, 1 on each side, 3 along the bottom. Drop every screw into your container immediately—no “I’ll remember where this goes” (you won’t).
3. Access the Back & Side Clip
• Pry open the back panel (it’s held by plastic clips—use your fingers, not a screwdriver, to avoid cracking it).
• Slide out the side plastic piece (it’s a single clip—pull straight out, no force needed). This gives you clear access to the wiring.
Installation: Avoid These Common Mistakes
Swapping the element is easy—if you don’t skip these steps.
1. Inspect the New Part First
Take 10 seconds to tighten the pre-attached screws on the new heating element. They’re often loose from shipping—loose screws = bad contact = fried component later.
2. Route Wires Like a Pro (No Pinching!)
• Slide the new element into place—it bends slightly to fit. Tuck the wires behind the plastic clips (follow the original path—copy what the old one did!).
• Side wires: Snap them into the built-in clips (feel around for the slots—they’re hidden but easy to find). Pinched wires = short circuit—don’t rush this.
3. Use NEW Screws (Old Ones = Failure)
The replacement kit comes with new screws—DO NOT REUSE THE OLD ONES. Here’s why: Old screws have thread locker (sticky glue) that wears out after 1-2 uses. New screws are pre-coated to stay tight—save the old ones for spares, but don’t install them.
Tighten evenly—no over-torquing! Plastic cracks easily if you crank screws too hard.
4. Double-Check the Back Connector
• Reattach the electrical plug (it only fits one way—align the pins first). Push until it clicks—no half-plugs. A loose connection will fry the heating element instantly.
• Verify wires: No kinks, no loops, no wires sticking out where the panel will crush them.
5. Reinstall the Hotend
Slide it back into the mount and press firmly—you want it snug (loose = uneven heating). Give it a gentle wiggle to make sure it’s seated.
Final Test: Power It Up!
• Plug the printer back in and turn it on.
• Test the heater: Set the nozzle to 356°F (PLA temp) and wait 2-3 minutes. Check that the temp rises steadily (no drops or error messages).
• If it heats up evenly? You’re done! If not? Double-check the back connector—9 times out of 10, it’s a loose plug.
Pro Tips (From Someone Who Messed This Up Before)
• Stuck hotend? Put a tiny drop of isopropyl alcohol on the base—loosens grime without damaging plastic.
• Don’t force plastic clips! If something won’t pop off, wiggle gently—Bambu’s plastic is sturdy, but not indestructible.
• Save the old heating element: It’s good to have as a spare (or to harvest screws if you lose one later).
That’s it—30 minutes tops, vs. the hour+ the official guide takes. This hack works for both A1 and A1 Mini—same steps, same savings.
Got questions? Stuck on a step? Drop a comment below—I’ve fixed 20+ of these, so I’ve seen every possible mishap.
Happy printing (and repairing)! ️
