If your printer is moving like everything is fine but nothing is coming out of the nozzle, I know that exact pain. The print head keeps tracing the model, the extruder keeps trying, and the part slowly turns into air-printing sadness.
Here’s the deal: a clogged nozzle does not always mean the nozzle is dead. In my experience, a lot of “dead” nozzles are just packed with softened filament, burned residue, or a tiny bit of debris sitting in the wrong place. Before you throw the hotend away, it is worth trying a few simple fixes.
This guide is based on the Markdown notes you provided: cold pull, heated extrusion, cleaning needle, heat-gun cleaning, and isopropyl alcohol soaking. I’ll also explain when it makes more sense to stop cleaning and check a Bambu-compatible nozzle or hotend replacement instead.
If you are already at the replacement stage, the Call3D Bambu nozzle and hotend collection is the right place to compare compatible parts for P1S, P2S, A1, X2D, A2L, and H2D:
Most users notice the problem only when the printer stops extruding, but the clog usually starts earlier. You may see thin extrusion, clicking from the extruder, rough first layers, random gaps, or filament curling up around the nozzle before it fully blocks.

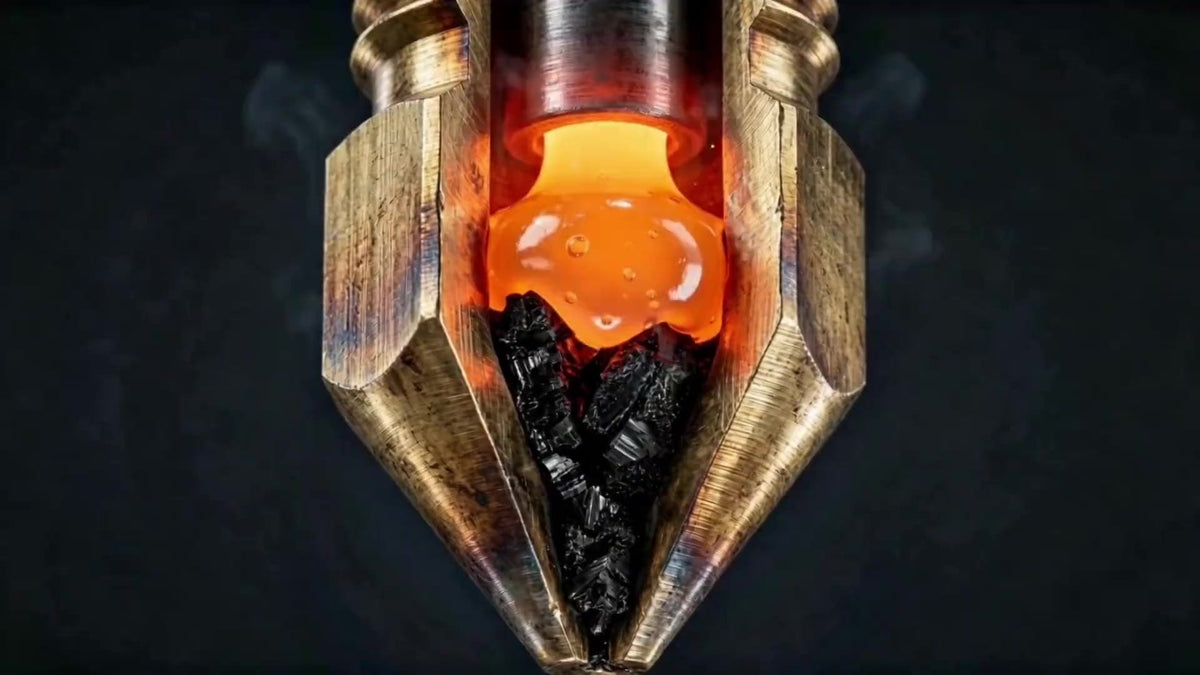

Usually, the cause is not mysterious. Old filament residue, dust, burned material, abrasive additives, or a temperature mismatch can leave small bits inside the melt path. Over time, those bits build up until the filament can no longer flow cleanly.
This is why a 3D printer unclog nozzle workflow should start with the least aggressive method first. In my experience, jumping straight to harsh cleaning can damage the nozzle, snap a needle, or make the problem harder to diagnose.
The first rule is simple: do not work on a cold nozzle with metal tools. If the nozzle is cold, hardened filament can grip the tool, and a cleaning needle can snap inside the tip. That is a tiny problem turning into a very annoying one.
Before trying anything, heat the nozzle to the normal printing range for the material you were using. Wear heat-resistant gloves, keep flammable liquids away from heat, and do not rush the process. Most clog fixes are easy, but they still involve hot metal.
For Bambu owners, the same logic applies whether you are using an OEM-style hotend or an upgraded nozzle setup. Compatibility and installation details matter, so if cleaning fails and you move to replacement, make sure you choose the correct nozzle or hotend for your exact printer model.
A cold pull is usually my first move for a mild clog. It works by pushing filament into the hot zone, cooling it until it becomes semi-solid, and then pulling it out so it grabs residue from inside the nozzle.
From your Markdown notes, the basic process is:
When it works, the pulled filament may come out with a dirty tip or dark residue attached. That is exactly what you want. In my experience, cold pulls are best for light clogs, partial blockage, and leftover residue, not for a nozzle that is fully carbonized inside.
The common mistake is pulling too early or too late. If the filament is too soft, it stretches and leaves material behind. If it is too cold, it can snap. The temperature window depends on the filament, so treat 70–90°C as the range from your source notes, not a universal magic number for every material.
If the nozzle is not fully blocked but extrusion looks weak or uneven, heated extrusion is the simple “flush it out” method. Heat the nozzle to the material’s rated melting temperature and manually extrude filament until the flow looks smoother.
This works best when the clog is caused by small particles or softened residue. You are basically using fresh filament as a cleaning push. In my experience, this is worth trying when the printer still extrudes but the line looks thin, inconsistent, or slightly curled.
Do not force it too hard. If the filament will not move at all, pushing harder can grind the filament or stress the extruder. That is usually the moment to stop and switch to a cold pull or cleaning needle instead.
A cleaning needle is the classic quick fix, but it needs a light hand. Heat the nozzle first, then insert the needle from the nozzle tip and gently move it up and down while feeding filament.
The key word is gently. Most users miss this part because the clog feels like something you should attack. In reality, the nozzle opening is small, and aggressive poking can deform the tip or break the needle.
In my experience, this method is best for daily maintenance and simple blockages. It is not my favorite fix for heavy carbonized clogs, because a needle may only punch a tiny path through the blockage instead of clearing the melt path properly.
If the nozzle has burned material inside, normal extrusion and cold pulls may not be enough. Your Markdown notes suggest removing the metal nozzle, holding it with pliers, and heating it with a heat gun to soften the internal carbonized material before removing debris with tweezers or a fine needle.
This is more aggressive, so I would treat it as a later-stage fix. Remove only the metal nozzle for this kind of cleaning, and keep plastic parts, wiring, fans, and electronics away from direct heat.
The biggest risk is overheating or damaging parts around the hotend. In my experience, this method makes sense when the nozzle is already unusable and you are trying to save it before replacement. If you are uncomfortable with high heat, hard pass—replace the nozzle instead.
The fifth method from your Markdown document is soaking the removed nozzle in isopropyl alcohol for 2–4 hours. This can help soften some residue, especially when combined with later mechanical cleaning.
The safety note matters here: keep isopropyl alcohol away from open flames and heat sources. After soaking, let the nozzle dry completely before reinstalling it. Do not heat a wet nozzle with solvent still inside.
I would not call this a universal fix for every filament. Different materials behave differently, and some residues will not dissolve easily. But as a low-cost cleaning step for a removed nozzle, it is reasonable before deciding the part is done.
There is a point where cleaning becomes a time sink. If you have tried cold pulls, heated extrusion, needle cleaning, and careful removed-nozzle cleaning, and the nozzle still refuses to flow, the part may simply be worn, damaged, or too contaminated inside.
That is especially true if you often print carbon fiber, glass fiber, marble, glow-in-the-dark, or other abrasive filaments. Abrasive materials can wear nozzle openings faster, and once the nozzle geometry changes, cleaning alone will not restore the original behavior.
This is where a replacement makes sense. For Bambu users, Call3D’s Bambu nozzle and hotend collection includes OEM and upgraded options across supported models, including P1S, P2S, A1/A1 Mini, X2D, A2L, and H2D. The collection is useful because you can choose by compatibility instead of guessing:
If you are replacing the nozzle, do not just buy the first part that looks close. Bambu printers have model-specific hotend and nozzle designs, and a wrong part can waste more time than the clog itself.
For normal PLA or PETG, a standard stainless steel nozzle is usually fine. For abrasive filaments like carbon fiber, glass fiber, marble, or filled materials, a hardened steel nozzle is the safer choice because it is designed to resist rapid wear better than standard brass or stainless options.
Nozzle diameter matters too. A 0.4 mm nozzle is the normal do-it-all size for daily printing. A 0.2 mm nozzle is better for fine detail and miniatures, while a 0.6 mm nozzle can help with faster printing and stronger functional parts. In my experience, users who clog often sometimes benefit from stepping up in diameter, but only if the part detail and slicer settings still make sense.
The boring habits help the most. Keep filament clean and dry, avoid leaving old material cooked in the nozzle for too long, and use the right nozzle material for the filament. If you switch between high-temperature and low-temperature materials, purge carefully so leftover material does not sit inside the hotend.
Most users also forget that nozzle cleaning is not just about the nozzle. The extruder path, filament quality, slicer temperature, retraction behavior, and material additives can all affect flow. That is why I avoid promising that one cleaning method will fix everything.
For Bambu printers, I would also check compatibility notes before upgrading hotends or nozzles. Call3D lists compatible models on the Bambu nozzle collection, and that matters more than chasing the most expensive part.
Usually, yes, if it is a light or partial clog. Try heated extrusion, a cold pull, or a cleaning needle while the nozzle is hot. If the clog is heavy or carbonized, removing the nozzle may be safer and more effective.
Replace it when repeated cleaning does not restore smooth flow, when the nozzle is visibly damaged, or when abrasive filament has worn the opening. In my experience, worn nozzles waste more time than they save.
They can contribute to wear and flow problems, especially if the nozzle material is not suitable. For carbon fiber, glass fiber, marble, or other abrasive materials, a hardened steel nozzle is usually the better choice.
It can be more forgiving with some materials because the opening is larger, but it is not a universal fix. You still need the right temperature, clean filament, and compatible slicer settings.
A clogged nozzle is annoying, but it is not automatically a dead hotend. Start with the low-risk fixes, work carefully, and only replace the part when cleaning no longer makes sense.
If you are printing on a Bambu machine and want to compare compatible nozzle or hotend options, Call3D focuses on Bambu Lab replacement and upgrade parts with model-specific compatibility listed. Just keep the expectation realistic: the right nozzle reduces wear and clog risk, but material, settings, installation, and maintenance still matter.
