Bambu Lab X1 & P1 Extruder Gear Replacement Guide

If your Bambu Lab X1/P1 series printer starts “printing in the air,” under-extruding, or producing weak parts with missing material, the extruder gear may be worn. In one X1/P1 repair case, the root problem was not a failed motor — it was a severely worn extruder gear caused by long-term feeding resistance from nozzle or hotend clogging.

Replacing the extruder gear can restore normal filament feeding, but it is important to fix the clogging issue as well. Otherwise, the new gear may wear out again.

This guide is written for Bambu Lab X1/P1 series extruder gear replacement. Always power off the printer before disassembly, keep track of screws and springs, and refer to the official service guide if you are unsure.

A worn extruder gear usually shows up as a feeding problem first. You may notice:

• The printer moves normally, but little or no filament comes out.
• Prints show large areas of under-extrusion.
• Printed parts become weak, rough, or “honeycomb-like.”
• The extruder clicks, slips, or grinds filament.
• Filament loading feels inconsistent.
• The printer keeps trying to feed, but extrusion does not recover.

These symptoms can look like a nozzle clog, hotend issue, or filament problem. In many cases, they are connected. A clogged nozzle or hotend increases resistance, and that extra resistance forces the extruder gear to work harder.

The extruder gear grips filament and pushes it forward. When the filament path is clean and resistance is low, the gear can feed material smoothly.

But when the nozzle or hotend is partially blocked, pressure rises. The extruder keeps trying to push filament forward, while the filament resists movement. Over time, this can cause:

• Gear teeth to grind against filament
• Filament dust to build up inside the extruder
• Reduced grip between the gear and filament
• Visible wear on the gear teeth
• More slipping and under-extrusion

In the repair case this article is based on, the X1 printer was from 2022 and had serious extrusion problems. After opening the extruder, the worn gear teeth were easy to see.

Before starting, prepare a clean workspace and keep the small parts organized.

You may need:

• Replacement extruder gear assembly
• Hex keys or screwdrivers for the X1 extruder
• Tweezers or small pliers
• A small tool for removing or transferring the bearing
• Cleaning brush
• Filament for testing
• Optional: cold pull filament or cleaning filament

If you are upgrading or replacing the gear, choose a compatible extruder gear for your Bambu Lab X1 series printer.

For this repair, the recommended replacement part is the Hardened Steel Extruder Gear for Bambu Lab P1S / X1C:

This type of hardened steel gear is a practical choice when the original drive gear is worn, slipping, or no longer gripping filament consistently. It is especially relevant for printers that have seen long-term use, repeated nozzle clogs, or abrasive-material printing.

Before ordering, confirm compatibility with your exact Bambu Lab printer model and toolhead version.

Turn off the printer before working on the toolhead. Do not service the extruder while the printer is powered or moving.

Then:

1. Unload filament if possible.
2. Remove the filament guide tube.
3. Open the toolhead area carefully.
4. Keep screws and covers in order as you remove them.

If filament is stuck, do not force it aggressively. A hotend clog may need to be cleared separately.

After the filament tube is removed, take out the extruder assembly.

In the referenced repair, the extruder was held by four main screws. After removing them, the extruder could be taken out for service.

Be careful with cables, connectors, springs, and small parts. The X1 toolhead is compact, so forcing the wrong part can cause avoidable damage.

The tension screw controls spring pressure on the filament drive system. Before removing the gear assembly:

1. Loosen the tension screw.
2. Release the spring pressure.
3. Remove the back cover carefully.
4. Note the position of the spring and gear parts.

Taking a photo before disassembly is a good idea. It makes reassembly much easier.

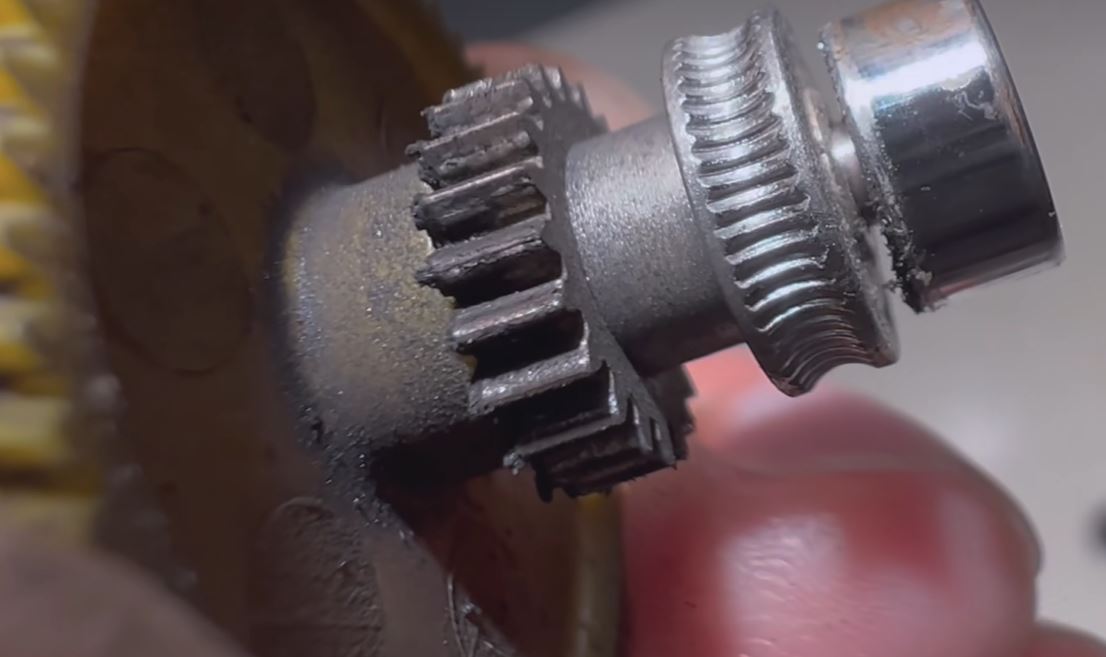

Once the cover is open, inspect the gear teeth. A worn gear may look flattened, polished, damaged, or packed with filament debris.

Remove the worn gear and spring assembly. If the bearing needs to be transferred to the new gear assembly, remove it carefully and install it onto the replacement part.

Do not strike the bearing or shaft with excessive force. The goal is to transfer the part cleanly without bending or damaging the assembly.

Install the replacement gear assembly in the same position as the original.

Check that:

• The gear is seated correctly.
• The bearing is installed properly.
• The spring is in the correct position.
• The gear can rotate smoothly.
• The filament path is not blocked by debris.

Before closing the extruder, remove any filament dust or ground filament particles inside the housing.

After reassembly, test the printer before starting a long print.

Suggested checks:

1. Manual extrusion test — heat the nozzle and command the extruder to feed filament.
2. Gear movement test — listen for clicking, slipping, or grinding.
3. Filament loading test — confirm that filament loads smoothly.
4. Small print test — print a short calibration or simple part.
5. Surface quality check — look for gaps, weak walls, or missing extrusion.

In the repair case, the X1 printer returned to smooth and consistent extrusion after the gear replacement and follow-up checks.

Consider replacing the extruder gear if you have already checked the nozzle, filament, and slicer settings but still see persistent feeding problems.

Replacement may be worthwhile when:

• The gear teeth are visibly worn.
• Filament is being ground instead of fed.
• Under-extrusion continues after nozzle cleaning.
• The printer has seen heavy use.
• The extruder slips even with normal filament and temperature settings.

For older X1 series printers, especially machines that have printed many hours or experienced repeated clogs, the extruder gear is a reasonable maintenance item to inspect.

A Bambu Lab X1 series printer with severe under-extrusion does not always need a new motor or full toolhead replacement. Sometimes the problem is a worn extruder gear inside the feed system.

Replace the gear, clean the filament path, and most importantly, fix any nozzle or hotend clog that caused the extra feeding resistance in the first place. That combination gives the new gear the best chance of lasting and helps the printer return to stable extrusion.
