Heat Creep 3D Printer: Why a Hot Room Looks Like Worn Gears
|
|
Time to read 4 min
When an enclosed Bambu printer starts clicking or stops feeding in a hot room, worn extruder gears may seem like the obvious cause. In this repair, however, the gears were not the problem. PLA had softened around them before reaching the hotend, leaving them unable to grip and feed the filament.
The important first step is to find out where the failure is happening: inside the extruder, inside the nozzle, or around the outside of the hotend. These problems need different fixes.
Identify a Heat Creep 3D Printer Failure Before Replacing Parts
A print may start normally, then develop clicking or under-extrusion as the enclosure warms up. If you can unload the filament, inspect the section that passed through the extruder. A flattened, swollen, or chewed section is a reason to check for premature softening and trapped material—not immediately order new gears. That appearance alone does not confirm the cause; inspect the extruder as well.
If you only use the maintenance window, you may not even see it. On a compact Bambu toolhead, the stuck section often sits in a blind spot. The X2D is not an exception. If heat creep packs the filament, you have to take the X2D fully apart. The current viewing and work window cannot show where it is stuck, so there is no way to clear it from there.
In the repair described here, softened filament had been compressed into the gear assembly. This was different from a simple nozzle clog or gears that had worn down and lost their grip.
PETG needs a separate diagnosis. It can also suffer from heat creep, but its higher glass transition temperature makes it generally less prone than PLA to premature softening under the same chamber conditions. A common issue to check for is PETG accumulating on the nozzle and forming a blob around the hotend. This external buildup, often called hotend blobbing, is not the same as filament softening inside the feed path.
Clear a Packed Extruder Before the Next Print
Once deformed filament is trapped inside the gears, opening the door or adding cooling will not remove it. Replacing gears alone also does not address the heat that caused the filament to soften.
In this case, the stuck section could not be reached with tweezers or through the maintenance window. The extruder module had to be removed and opened so the trapped filament could be cleared. Follow the repair procedure for your model rather than forcing a tool into the feed path.
The same access limitation matters on X2D: if the jam is hidden inside the gear assembly and cannot be reached through the viewing or service window, the extruder needs to be opened. Not every heat-related feed problem requires a full teardown; the location and severity of the blockage determine the repair.
Reduce Heat Buildup on the Next PLA Print
For 3D printing in hot weather, room temperature is part of the setup. A warmer room makes it harder for an enclosed printer to shed heat, so settings that worked in spring may become less reliable in summer.
The repair guidance recommends three practical changes for PLA and silk PLA:
- Open the door to let heat escape, where your setup allows it.

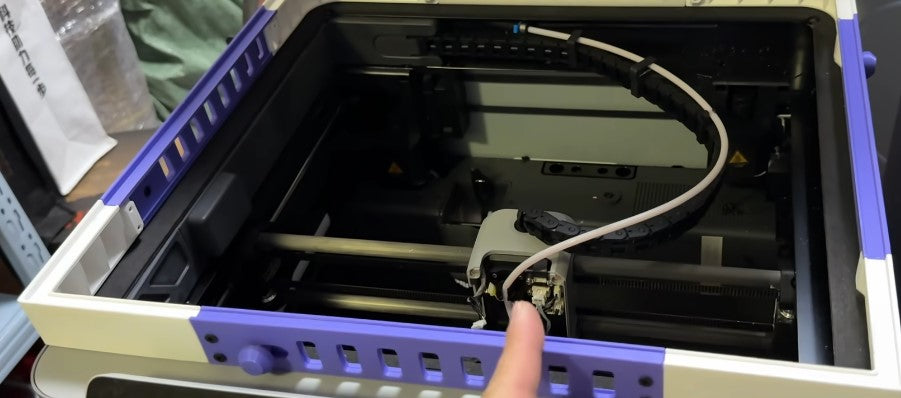

- Add a riser under the glass lid to provide another ventilation path.
- Monitor chamber temperature rather than judging conditions by how the room feels. If the room itself is very hot, air conditioning may be needed; ventilation alone has limits.
Usually, in our observation, once indoor temperature reaches 32°C (90°F), 30% of X1C and P1S printers jam because of heat creep. Above 35°C (95°F), 80% of those machines cannot print normally.
Do not keep that door-open rule for PETG, PA, or other materials that want a hotter enclosure. For PA, hot weather can be the better setup. A warm room helps the chamber hold temperature, so the part is less likely to warp.
When The Door Has To Stay Closed
If opening the enclosure is impractical, cooling the extruder path is another prevention option. CoolDry Pro sends dry, chilled air through the stock filament path into the extruder, targeting the cold zone rather than cooling the entire chamber.
A cooler is a prevention tool, not a way to clear an existing jam. It also does not make ordinary PLA suitable for every chamber temperature. The listing notes that, on X2D, chamber temperatures above about 48°C may require a more heat-tolerant PLA.
Does the X2D also need to come fully apart?
Yes, if it hits heat creep. You have to take the X2D fully apart. The current viewing and work window cannot show where the filament is stuck, so there is no way to clear it from there.
Is a summer feed failure just worn extruder gears?
Not in this case. It looks the same: the gears cannot bite or feed. The filament softened and packed at the gears. Replacing the gear set would have left that filament in place.
Should I keep the door closed for PLA in hot weather?
The repair guidance says no. For PLA and silk, open the door and try to hold chamber temperature under 40°C. If you need the door closed, look at extruder-path cooling on the CoolDry Pro page instead of hoping the stock setup will shrug off the room.
Closing Note
Call3D sells Bambu Lab upgrades for owners who would rather prevent a teardown than repeat one. If a hot room is already jamming the gears, start with the door, the riser, and the chamber number. If those are not enough and you still need the enclosure closed, that heat creep 3d printer page is the next place to read. Shipping is calculated at checkout, and the listing shows a 30-day return window.
