X2D Remove PTFE Tube From Extruder: A Practical Repair Guide
|
|
Time to read 8 min
If you are trying to X2D remove PTFE tube from extruder and the tube will not come out, do not just pull harder. That is usually the moment when a small maintenance job turns into a broken sensor, damaged clip, or a much more annoying repair.
On the X2D, the PTFE tube near the filament detection / Hall switch area can wear down, deform, or get stuck inside the connector. In my experience, the worst case is when only a tiny piece of tube is left visible, so it feels like you should be able to grab it — but the internal metal clip is still holding it in place.
Here’s the deal: if the tube is stuck, treat it like a disassembly job, not a force job. This guide walks through the safer repair logic based on the provided teardown notes, then explains how to cut and install a cleaner replacement PTFE tube so you do not create the next feeding problem.
X2D Remove PTFE Tube From Extruder: When You Should Stop Pulling
The first warning sign is simple: the PTFE tube is worn, shortened, cracked, or stuck so badly that it does not slide out with normal pressure. If you keep pulling, you can damage the internal retaining metal piece or the filament detection / Hall switch module.
Most users make the same mistake here. They assume the PTFE tube is just friction-fit and should come out with enough force. Usually, that is a bad bet. When the tube end is chewed up or trapped inside the clip, removing the whole detector module first is often the safer path.
Before you start, place a small box or tray under the printer. The screws are tiny, and if one drops into the motion system, you may create a second problem while trying to fix the first one.
Tools And Prep Before Opening The X2D
You do not need to overcomplicate the setup, but you do need to stay organized. Keep a small container nearby for screws, and separate the screw types as you remove them.
A few practical habits help a lot:
- Use a small tray or box to catch falling screws.
- Take a quick phone photo before unplugging connectors.
- Do not mix silver flat-head screws with coarse-thread self-tapping screws.
- If a connector has protective foam or tape, remove it slowly and save the orientation.
- Never cut the new PTFE tube with regular scissors.
That last point matters. Scissors can crush the tube opening, making the inner diameter smaller. For filament path parts, a clean square cut is not cosmetic — it affects feeding reliability.
Opening The X2D Shell Without Turning It Into A Fight

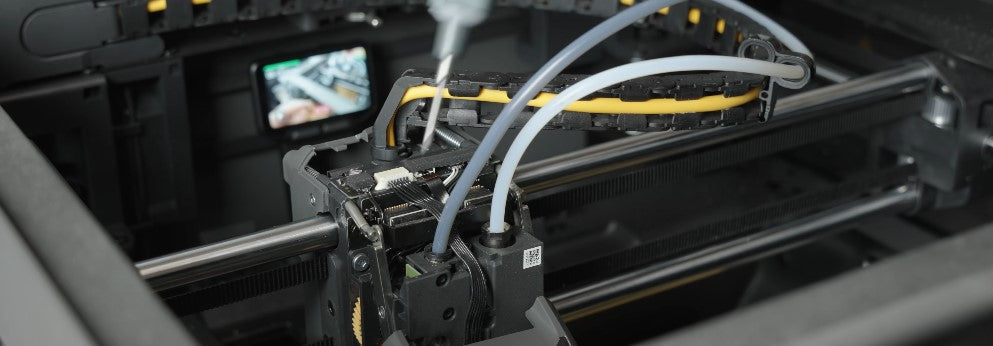

Start by removing the shell screws on both sides. The source notes mention four shell screws in total, with one screw positioned at an awkward angle. Take your time here. A stripped screw is a much bigger headache than spending another minute on the angle.
After the screws are removed, the cover may still feel tight. A little outward force may be needed to release it, but do not treat the cover like disposable plastic. Work slowly and check whether anything is still catching.
Once the cover is off, inspect the PTFE tube end. If it is badly worn or almost flush with the connector, do not yank it out from the outside. That is the exact situation where disassembling the detector module makes more sense.
Removing The Filament Detector / Hall Switch Module
To access the stuck PTFE tube properly, you need to remove the filament detection module instead of attacking the tube from the outside.
The general sequence is:
- Loosen the two larger black screws holding the small cover plate.
- Carefully peel back the protective foam or tape over the connector.
- Lift the small black latch on the connector. Tweezers can help here.
- Unplug the sensor connector gently.
- Angle the whole detector module out of the tight space.
The key is patience. There is not much room inside this area, so the module may need a little angle adjustment to come out cleanly. If it does not move, check the connector and screws again before applying more force.
Fixing The Stuck PTFE Tube
Once the module is out, the stuck PTFE tube is much easier to deal with. If you have a replacement module, this is the point where you can swap it in. If the module is still usable, you may be able to remove the broken tube piece more safely while the module is on the bench.
When reinstalling the module, pay attention to orientation. The source notes specifically call out the metal side direction during reassembly. Do not rely on memory here — use the photos you took before disassembly.
Also watch your screws:
- Silver screws are usually flat-head screws.
- BT / self-tapping screws have a coarser thread and are used for plastic parts.
Mixing these up can strip plastic or leave the cover poorly seated. It is a small detail, but it matters when you want the repair to stay reliable.
Cutting And Installing The New PTFE Tube
This is the part where many users accidentally create the next filament feeding problem.
Use a proper PTFE tube cutter, not regular scissors. A clean, square cut keeps the tube opening round. If the opening is crushed, filament can drag, bind, or feed inconsistently.
Based on the source notes, a PTFE tube with 2.5 mm inner diameter is recommended. Match the original tube length as closely as possible, keeping the difference within a few millimeters.
For installation:
- Cut the tube cleanly and square.
- Compare the length against the original tube.
- Insert the tube straight into the lower connector until it seats fully.
- Pass it through the upper guide / limiting hole.
- Check that the path is smooth before closing the shell.
If the tube does not insert smoothly, stop and inspect the cut. Do not force a deformed tube into the path and then wonder why feeding feels rough later.
Choosing A Replacement PTFE Tube For X2D Repairs
A replacement tube is not just “any white plastic tube.” The cut quality, outer diameter, inner path, and material surface all affect how smoothly filament moves through the printer.
For this kind of repair, the replacement should be easy to cut cleanly, suitable for 1.75 mm filament paths, and smooth enough to reduce drag after reassembly. If the old tube failed because the end was worn, crushed, or stuck in the connector, replacing it with another rough or poorly cut tube only moves the problem a few prints down the road.
For users who need a replacement tube, Call3D carries a 1-meter 3D printer PTFE tube here: 3D Printer PTFE Tube for Smooth 1.75mm Filament Feeding. The product page lists a 4 mm outer diameter, a star-shaped low-contact inner profile, and variants for lower-resistance or cleaner material contact. Before ordering, confirm the connector size, routing length, and exact use position on your X2D.
Why A Star-Shaped PTFE Tube Can Help Feeding Reliability
A standard round PTFE tube gives the filament a continuous contact surface. That can be fine in many short, straight paths, but drag becomes more noticeable when the path is curved, long, or used with flexible materials like TPU.
The Call3D PTFE tube uses a star-shaped inner profile, which reduces the contact area between the filament and the tube. In practical terms, that can mean less feeding resistance compared with a regular round guide tube. The raised inner contact points also wear smooth first before the tube wall is worn through, which can help extend practical service life.
Do not treat this as a guaranteed fix for every feeding issue. A crushed cut, bad connector fit, tight bend, wet filament, or damaged extruder can still cause problems. But if you are already rebuilding the tube path, using a smoother, lower-resistance replacement is a sensible upgrade.
X2D Remove PTFE Tube From Extruder Without Damaging The Sensor
The safest mindset is this: when the PTFE tube does not move normally, remove the surrounding module first. The X2D filament detection / Hall switch area has small internal parts, and forcing the tube can damage parts that are harder to replace than the tube itself.
Usually, the repair is not technically difficult. The hard part is staying organized in a tight space and not rushing the clips, screws, and connector.
If you are doing this for the first time, I would expect the process to take longer than the “quick repair” version. Once you know the screw positions and module angle, it can become a much faster maintenance job.
Common Mistakes To Avoid
The big mistakes are all very preventable:
- Pulling the stuck PTFE tube by force
- Dropping small screws into the printer
- Forgetting connector orientation
- Mixing screw types during reassembly
- Cutting PTFE tube with scissors
- Installing a tube with a crushed or angled end
- Closing the shell before checking smooth filament feeding
Most of these mistakes happen because the user is trying to save five minutes. In my experience, those five minutes are not worth risking a damaged detector module.
Why Can’t I Just Pull The X2D PTFE Tube Out?
If the tube is worn, deformed, or stuck inside the retaining clip, pulling harder can damage the internal metal piece or the filament detection module. Removing the module first gives you better access and control.
What PTFE Tube Size Should I Use?
Based on the source notes, 2.5 mm inner diameter PTFE tube is recommended for the repair area. Also confirm outer diameter, connector fit, and tube routing before installation.
Can I Use Scissors To Cut The PTFE Tube?
I would avoid it. Scissors can flatten or deform the tube opening, which can create feeding resistance. A dedicated cutter gives a cleaner square cut.
Is The Call3D PTFE Tube Only For X2D?
No. The product page lists it as a 1-meter 3D printer PTFE tube for 1.75 mm filament feeding, with compatibility across multiple Bambu and other printer setups. For this X2D repair, always confirm the length, connector size, and route before use.
Does A Star-Shaped PTFE Tube Fix Every Feeding Problem?
No. It can help reduce filament contact area and feeding drag, but feeding issues can also come from tight bends, poor cuts, bad connectors, wet filament, or extruder problems. Treat it as a cleaner replacement path, not a magic fix.
Final Note
The X2D PTFE tube repair is not about brute force. It is about access, orientation, and clean reassembly. If the tube is stuck, step back, remove the detector module carefully, cut the replacement tube cleanly, and rebuild the filament path without rushing.
If you need replacement tubing for the repair, the Call3D 1-meter 3D Printer PTFE Tube is the correct product direction for this article — not a routing switch. Just confirm the fit for your exact X2D route before cutting.
