If your Bambu X2D dynamic flow calibration is still using the same K value as a normal extruder, your auxiliary nozzle may never print as cleanly as it should. The X2D’s remote extruder path behaves differently, so pressure advance, K value, and dynamic flow need to be calibrated separately for each material.
This guide is based on a real X2D remote extruder calibration workflow. It covers where to find the calibration tool, how to generate the test pattern, how to choose the right value, and why different filaments can require very different results.
Compatibility and results can vary by firmware version, slicer version, filament type, nozzle type, temperature, and installation. Use this as a practical workflow, not a universal fixed value.
Table of contents
The X2D remote extruder is not the same as the main direct-drive toolhead path. Because the filament path and extrusion behavior differ, the default K value that works for a normal extruder can look poor on the remote extruder.
In the video workflow, the creator compares the normal K-value range with the remote extruder result and shows that the expected value can land closer to 0.5–1.0 for the tested material. A normal low K value around 0–0.1 may not properly compensate the pressure behavior of the remote extrusion path.
That matters because poor pressure advance can show up as:
If the auxiliary nozzle is only used for rough support, small defects may be acceptable. But if you want it to print functional features, dual-material parts, or visible surfaces, proper Bambu X2D dynamic flow calibration becomes much more important.
Before starting, make sure the slicer and printer settings match your actual hardware and material. If you are using a high-flow auxiliary nozzle, select the correct high-flow nozzle profile first.
Start by choosing the auxiliary nozzle configuration that matches your setup.
For example:
This matters because the slicer needs to generate the test pattern based on the same nozzle and flow assumptions that you will actually print with.
In the slicer preferences, enable Developer Mode. After this is enabled, the calibration button becomes available.
The basic path is:
The interface wording may vary by slicer version, but the purpose is the same: you need the calibration tool that generates a pressure advance pattern.
In the calibration tool, select the option for the remote extruder pattern.
The workflow shown in the source video uses:
This range is a practical starting point. In the creator’s testing, several PETG materials fell within 0–1, so it was enough for the first pass.
If your best result is not visible within that range, you can widen the test range and run another calibration.
This is one of the most important steps: make sure the filament selected in the calibration tool is the same filament you are actually testing.
Do not assume one material profile works for every spool. In the source workflow, two tested materials had K values that differed by about 0.5, which is large enough to make an uncalibrated print look obviously worse.
For better repeatability:
After printing the pattern, inspect the lines and corners carefully. A magnifier can help, especially when the best values are close together.
You are looking for the line where:
In the source example, the creator finds that lower values still show under-filled corners, while a value around 0.72 gives a noticeably cleaner result.
Do not copy 0.72 as a universal value. Treat it as a real-world example from one material and one setup. Your value may differ depending on filament, nozzle, temperature, speed, firmware, and slicer settings.
Once you choose the best value:
Then switch to the device or auxiliary extruder settings and apply the saved PA value where required.
This step is important because the calibration is only useful if the saved value is actually assigned to the right material and extruder path.

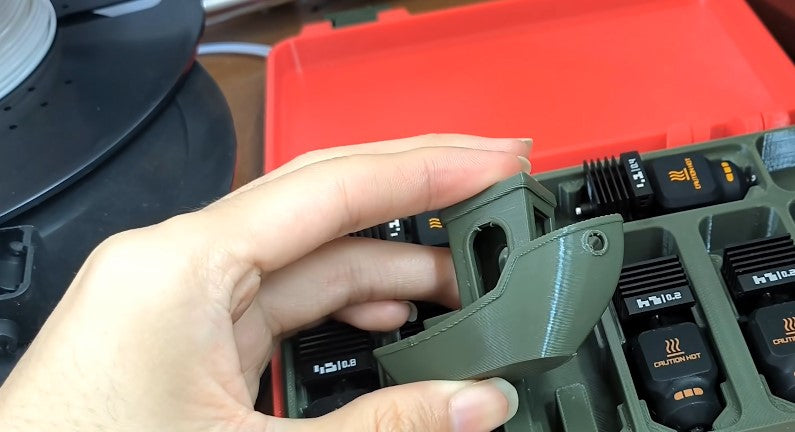

After saving the K value, the source workflow also calibrates the flow ratio and prints test models to confirm the result.
The test prints include:
The results are not perfect, but they are good enough for many practical cases. The surface smoothness is acceptable, seams still show minor defects, and some overhang/transition areas may still have visible issues.
That is a realistic expectation. The remote extruder can be useful, but it may not match the main extruder for every complex or highly detailed model.
After calibration, the X2D auxiliary nozzle is generally more suitable for:
It may be less suitable for:
The key point is not that the remote extruder is bad. It is that the auxiliary extruder needs the right expectations and the right calibration.
One of the most useful observations in the video is that two materials can have K values that differ by around 0.5. That is too large to ignore.
If you skip calibration, the remote extruder may only work well by accident when the material happens to be close to the default value. For most real use cases, especially if you switch brands, colors, or material types, you should expect to recalibrate.
A practical rule:
If you are building a more reliable X2D workflow, calibration is only one part of the setup. Hardware condition, nozzle choice, filament routing, and maintenance all affect the final result.
