Deep Dive into PLA Print Performance: Load-Bearing Tests Across Different Lengths and Contact Areas

Hey folks! This is the Big Bro. Today, we’re putting PLA 3D prints to the test—because let’s be real, nothing’s more frustrating than a print that snaps when you need it most. We’re using actual data to answer two big questions: How does length affect strength? And does contact area really make prints sturdier? Spoiler: The results will change how you design your next project.

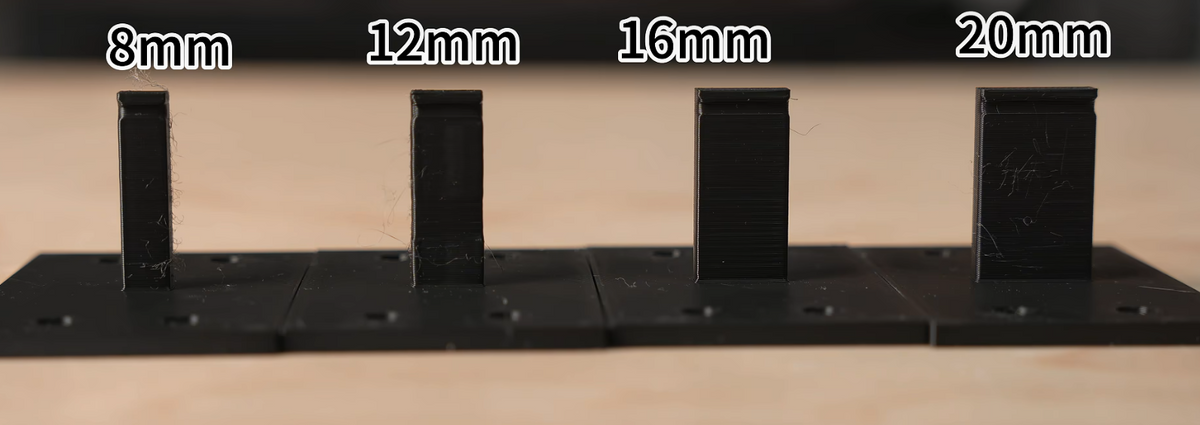

All the pieces you see here are our test prints—we’ve got more than enough to run through our experiments thoroughly. We’re zeroing in on two questions every PLA user asks:

Longer vs. shorter prints—which holds up better (and how much force does it take to break them)?

Is a bigger contact area actually worth it for strength? (Spoiler: It depends on the direction!)

First up, we tested how length impacts load-bearing. Our Z-direction test pieces are 510mm, and the XY-direction ones are 410mm. We set up test groups at 1cm, 2cm, and 3cm from the force point (adjusting the gap between force points to mimic different effective load-bearing lengths) and used control groups to isolate the effect of length.

We stuck with a torque machine for accuracy—just pull the print until it snaps, and the machine tracks the max force. Go past that point, and it resets—super straightforward. Heads up: All numbers here are torque (not kilograms), so don’t confuse the two!

To make sure the data was reliable, we tested each piece three times. Starting with Z-direction prints, you could clearly see the texture from the printing process.

Here’s the key takeaway first: XY-direction prints are 2–3x stronger than Z-direction ones—that’s a huge difference for design!

Breakdown: For Z-direction prints (same size), cutting the effective length by 1cm makes them 1.2x harder to break. For XY-direction? That jump is 1.6x. So if you need a durable print (like a bracket or handle), prioritize XY-direction—you’ll thank us later. Just a heads-up: These are results from our specific setup, so use them as a reference for your own projects.

Next, we tackled contact area to see how it influences strength.

Our Z-direction models are 5mm thick, with widths of 80mm, 60mm, and 20mm. The XY-direction models are 4mm thick, with the same width options. We stuck to a 3cm effective load-bearing length for all—shorter lengths would have made it too hard to break the prints, skewing the data.

We tested Z-direction prints first, then moved to XY-direction.

Z-direction prints followed a straightforward pattern: As contact area increased, load-bearing performance went up proportionally. When the area was between 40–50 (units), performance jumped 50%. Beyond that, the gain in strength matched the gain in area—pretty much a 1:1 ratio.

XY-direction prints were trickier, though. Early on, more contact area meant way better strength, but that improvement tapered off later. Our guess? Shear force is to blame. Once a notch forms in the print, shear force concentrates there, making it snap easily—even with a bigger contact area. Again, this is specific to our test conditions, so use it as a guideline, not a hard rule.

We had a total curveball mid-test: We ran out of gray filament, so we swapped in black for a few pieces. Turns out? Big shock—black filament prints pulled at over 100 Newtons, while gray ones only hit ~50N. That’s almost double the strength!

We’re not 100% sure why yet—could be differences in the filament itself (even same material, different colors can vary) or maybe the equipment change threw things off. We’ll run follow-up tests to get to the bottom of it. For what it’s worth, we tested the gray filament prints three+ times, so that data is solid.

This test gave us actionable data that actually matters for your 3D prints. Whether it’s the 2–3x strength edge of XY-direction prints or the proportional gains in Z-direction ones, these insights will help you design more durable projects—no more guessing!

Want the full test data sheet (including all the torque numbers)? Drop a comment below, and we’ll share it! We’re also diving deeper into the black vs. gray filament mystery next—so hit that subscribe button to stay in the loop.

Thanks for watching, folks! Have you had issues with PLA prints snapping? Let us know your horror stories (or wins!) in the comments. Catch you next time!
