If you are searching for a Bambu Lab PEEK filament or wondering whether Bambu H2D PEEK printing is possible, you have probably seen the same pattern: most answers online are just “yes” or “no,” and the reasons behind those answers are vague.
This article is written to make the “why” explicit. I will separate what the H2D can and cannot do, what this specific formulation changes, and which constraints still apply—so you can understand the boundary conditions instead of just repeating a conclusion.
1. Why I Wrote This Article
I’ll be honest: I was excited. I posted a quick “H2D printing PEEK” clip on Reddit, and—within minutes—got the full internet treatment: skepticism, jokes, and a surprising amount of technical cross‑examination.
One persistent commenter finally got through my emotional armor. They argued that the H2D couldn’t really process PEEK, that this material was “literally not PEEK,” and that a $700 spool deserved more than vibes and a video.
At first, my replies were more about “winning” than explaining. But buried inside the pile‑on were fair questions.
So this article is my attempt to do it properly: to separate polymer identity, formulation, printability, crystallinity‑dependent performance, and compliance documentation—and to be clear about what we know, what we don’t, and where the boundary conditions really are.
If you want to see the original “I broke” thread (and the comment section doing what it does best), here it is: Reddit discussion.
2. Can the Bambu H2D Print PEEK? The Short Answer
Yes—the H2D can print this specific low-crystallinity PEEK formulation under the tested conditions.
No—that does not mean the H2D can print every conventional PEEK filament. Many established PEEK grades require a hotter nozzle, a much hotter build chamber, and tighter thermal control than the H2D can provide.
The useful conclusion is therefore not “the H2D is now a universal PEEK printer.” It is:
The H2D can process this particular modified PEEK formulation within a defined window, but the printed part has crystallinity, layer-bonding, strength, documentation, and application limits that must be understood.
2.1 How We Printed It—and What the Parts Looked Like
Our H2D test used the following settings:
- Nozzle temperature: 350°C
- Bed temperature: 120°C
- Chamber temperature: 65°C
- Print speed: 30 mm/s
- Shell thickness: 1.2 mm
- Infill: 100%
The supplier’s recommended processing window is 340–380°C at the nozzle, 100–120°C on the bed, and 50–65°C in the chamber, with a recommended print speed of 30–60 mm/s. Our test therefore used the upper end of the H2D’s nozzle capability and the upper end of the recommended chamber range.
The parts printed successfully, but their surface did not look like the familiar opaque light-beige surface of well-crystallized injection-molded or machining-stock PEEK. Low-crystallinity or largely amorphous PEEK can appear darker, amber-brown, or less opaque. That visual difference does not prove that the base polymer is not PEEK; it reflects the formulation and thermal history of the printed part.
Current Test Results
The current supplier test data reports:
- X/Y tensile strength: 60–62 MPa
- Z/X tensile strength: 45–50 MPa without fan; 34–38 MPa with fan
- X/Y elongation at break: 60–70%
- X/Y tensile modulus: 2400–2600 MPa
- Flexural maximum force: 90–100 MPa
- Flexural modulus: 2500–2700 MPa
- Heat deflection temperature: 150°C
- Vicat softening temperature: 158°C
These results are reference values from a defined setup, not guarantees for every printed component. Geometry, orientation, cooling, moisture, slicer settings, printer condition, and post-crystallization can all change the outcome.
Practical Printing Notes
High-performance polymers require controlled storage and drying. The supplier also calls for glue and a thickened PEI build surface. Allow the chamber to stabilize before the critical layers begin, avoid unnecessary door opening, and start with a representative coupon rather than a large final component.
The fan comparison is especially important: reported Z/X tensile strength was lower with fan cooling. This shows that part cooling can weaken layer bonding even when the external surface looks acceptable.
2.2 Why Can It Print on an H2D When PEEK Normally Needs an Industrial High-Temperature Printer?
This is the central technical question.
Conventional PEEK is normally associated with dedicated industrial systems—including Stratasys-class or other high-temperature printers—because reliable printing requires more than simply melting the polymer in the nozzle. The printer must also control crystallization, thermal contraction, warping, and interlayer diffusion across the entire part.
PEEK melts at roughly 343°C. The H2D’s 350°C hotend is only slightly above that value, so it does not provide the processing margin commonly used for conventional PEEK grades. Its 65°C chamber is also far below the chamber temperature used by many industrial PEEK workflows.
The New Released Kexcelled THE K11™ is different because it is designed as a low-crystallinity modified PEEK formulation. Suppressing or slowing crystallization reduces crystallization-driven shrinkage and gives deposited roads more time to join before the structure locks in. This makes the material less likely to warp aggressively in the H2D’s lower-temperature chamber.
Low crystallinity does not magically make all PEEK printable at low temperature, and it does not mean the chamber is melting the polymer. The nozzle still has to melt and move the material. The formulation changes the processing behavior after extrusion: crystallization rate, shrinkage, viscosity, solidification, and layer-bonding window.
That is the trade-off. Conventional high-crystallinity PEEK processing uses more heat and environmental control to obtain a more crystalline, stable engineering part. This formulation accepts a lower-crystallinity as-printed structure in exchange for a processing window the H2D can reach.
3. Value and Limitations
The material is interesting precisely because it creates access to PEEK-based printing on a less expensive and more widely available machine. But that value only makes sense when the limitations are stated just as clearly as the benefits.
3.1 Where Are the Limitations?
Lower Crystallinity
Crystalline regions reinforce PEEK, especially above its glass-transition temperature. Lower crystallinity can mean lower stiffness, yield strength, dimensional stability, chemical resistance, wear resistance, fatigue performance, and high-temperature property retention compared with a well-crystallized grade.
Victrex notes that injection-molded PEEK is typically about 35% crystalline under controlled moulding conditions. Annealed extruded shapes can reach around 40%. A published FFF study reported crystallinity increasing from 16.10% before heat treatment to 28.70% after a 300°C, two-hour treatment, while the resulting tensile strength remained close to 80% of injection-molded PEEK.
Layer Bonding and Directional Strength
FFF parts are anisotropic. The current data makes that visible: X/Y tensile strength is reported at 60–62 MPa, while Z/X strength is 45–50 MPa without fan and 34–38 MPa with fan. A part may therefore perform well along the deposited roads but fail earlier across layer interfaces.
This matters for pressure, cyclic load, snap features, threads, thin walls, and any design where the primary load crosses the layer direction.
Lower Strength Than Injection-Molded or Machined PEEK
The printed material should not be treated as a drop-in substitute for a validated injection-molded component or a part machined from controlled PEEK stock. Even after annealing, layer interfaces, voids, raster orientation, additives, and the formulation’s crystallization ceiling remain.
A classic injection-molded PEEK study found that modulus and yield strength increased with crystallinity, while fracture toughness decreased. Higher crystallinity is not automatically better for every metric, but it generally improves the stiffness and high-temperature stability most engineers expect from conventional PEEK.
Post-Crystallization Has Its Own Risks

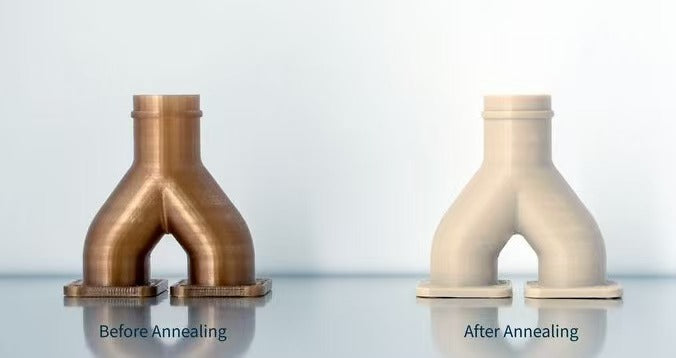

A controlled post-crystallization cycle may increase crystallinity, make the part more opaque or beige, improve heat stability, and reduce residual stress. It may also cause shrinkage, warping, distortion, and dimensional change. Parts may need support or fixturing, and critical dimensions must be checked again afterward.
Color is only a screening clue. Use DSC or X-ray diffraction when actual crystallinity matters.
Documentation and Compliance
CAS numbers support the identity of the base polymer. They do not replace a complete formulation disclosure, TDS, lot traceability, DSC report, chemical-resistance data, or industry-specific certification. Do not use the material in regulated, safety-critical, pressure-containing, medical, aerospace, or food-contact applications solely on the basis of the PEEK name.
3.2 Who Can Get Real Value From It?
This material is most valuable when the application needs more than a common engineering filament but does not require immediate equivalence to a certified, injection-molded PEEK component.
Potentially Valuable Applications
- Oil and lubricant exposure: fixtures, guides, covers, test pieces, and low-load components where resistance to oils or fuels is important—after compatibility testing with the actual fluid, temperature, and exposure time.
- Chemical environments: laboratory fixtures, handling tools, pump or valve prototypes, sensor mounts, and protective components—after testing against the specific chemical concentration and temperature.
- Elevated-temperature prototypes: parts that exceed the practical temperature range of PLA, PETG, ABS, or many nylons, while remaining within the validated limits of this printed formulation.
- Functional material screening: engineers who need to evaluate PEEK-based geometry, assembly, chemical exposure, or post-crystallization before investing in industrial tooling or a dedicated high-temperature printer.
- Low-volume customized components: jigs, fixtures, insulators, spacers, guides, and replacement parts where geometry and availability matter more than certification.
- Research and education: users studying crystallinity, annealing, anisotropy, and high-performance polymer processing on an accessible platform.
Who Should Be Cautious?
This is not the right starting point for applications that require certified medical or aerospace material, guaranteed pressure performance, long-term structural loading, validated flame/smoke/toxicity data, food-contact approval, or direct equivalence to a specified Victrex, Solvay, or other established PEEK grade.
For these customers, the correct route is a qualified material, a validated industrial process, and application-specific testing—not merely a successful benchmark print.
Is Kexcelled THE K11™ Really PEEK?
The supplier-provided CAS numbers 29658-26-2 and 31694-16-3 support identifying the base polymer as PEEK. Because the complete additive package has not been published, the responsible description is a low-crystallinity modified PEEK or PEEK-based formulation—not “100% pure PEEK.”
Can the H2D Print Conventional PEEK Filament?
Do not assume so. Many conventional grades require a larger processing margin above the melting point and a much hotter chamber. Compatibility must be evaluated grade by grade.
Does the Printed Part Need Annealing?
It depends on the application. Post-crystallization may improve crystallinity, heat stability, stiffness, chemical resistance, and dimensional stability, but it may also cause shrinkage and warping. Validate the cycle on representative parts and measure them afterward.
Is the Material Chemically Resistant?
PEEK as a polymer family is known for chemical resistance, but the finished filament’s formulation, crystallinity, temperature, stress state, and exposure time all matter. Test the printed part in the actual chemical environment before use.
Summary
So, can the Bambu H2D print PEEK? Yes—it can print this specific low-crystallinity modified PEEK formulation using a 350°C nozzle, 120°C bed, and 65°C chamber.
The result is valuable because it gives advanced H2D users access to PEEK-based prototypes and specialized low-volume parts without a dedicated industrial high-temperature printer. The limitation is that easier printing comes with lower crystallinity, directional layer strength, lower performance than well-crystallized injection-molded or machining-stock PEEK, possible annealing distortion, and incomplete compliance documentation.
Treat it as a new engineering option—not a universal replacement for every PEEK grade. Match the material to the application, test the real environment, and validate the final part.
