Bambu Lab Vision Encoder Worth it: Tested and Explained (what it’s for, what it’s not)
|
|
Time to read 5 min
There’s a very specific kind of disappointment that happens when you buy an “accuracy upgrade” and expect your prints to suddenly look nicer. Hard pass on that expectation.
In this video test, the Bambu Lab Vision Encoder is treated as what it actually is: an X/Y motion accuracy calibration tool, not a magic surface-quality button, and definitely not a Z-axis fix. At the time of this creator’s test, it was only for H series printers (Bambu has since released an X2D-compatible Vision Encoder version). That scope matters, because a lot of “does it work?” takes online are really “does it solve a different problem?” takes.
The reviewer also states the unit was sent for testing with no additional payment from Bambu Lab. That’s useful context if you care about incentives.
Dr. Igor Gaspar
My Tech Fun is a YouTube creator focused on practical, measurement-driven tech testing, with a particular interest in 3D printing and real-world calibration topics. The channel’s videos typically emphasize what a tool actually changes in day-to-day use—backed by clear test setups, before/after comparisons, and straightforward conclusions.
Table of contents
What The Bambu Lab Vision Encoder Is Not (Read This Before You Get Excited) Bambu Lab Vision Encoder: How It Works (The QR Matrix Concept) The Real Accuracy Trap: Filament Shrink And Moisture What The Reviewer Tested (Before vs After Calibration) Bambu Lab Vision Encoder Worth It: How To Use Bambu Lab Vision Encoder (Motion Accuracy Calibration) Measured Results: What Changed (And What Didn’t) So… Do You Need It? Practical Buying Guidance (No Overpromises) Closing Note
What The Bambu Lab Vision Encoder Is Not - Read This Before You Get Excited
Let’s start with the “what it won’t do” list, because most people miss this and then blame the product for failing a job it was never hired to do.
Per the test:
- It will not do anything along the Z axis.
- It will not improve surface quality.
So if your pain point is Z wobble, layer lines, or “my top surfaces look rough,” the Bambu Lab Vision Encoder is not targeting that. In my experience, this is the cleanest way to avoid buyer’s remorse: match the tool to the failure mode.
Bambu Lab Vision Encoder: How It Works
Here’s the deal. The Bambu Lab Vision Encoder has a surface filled with QR codes. The printer’s camera scans it and creates a matrix it can use to compensate during printing—but only in X and Y.
The reviewer compares the concept to how Z auto-leveling creates a compensation map. Same idea, different axis.
A key point in the explanation: this approach is described as absolute, not relative. In other words, it’s not just “nudge one global number,” but potentially correct specific areas of the bed if needed. Results still vary by the printer’s condition, environment, and how stable the whole system is.
The Real Accuracy Trap: Filament Shrink And Moisture
This is where the video gets more honest than most “accuracy accessory” discussions.
Even if you calibrate motion perfectly, filament shrink after cooling still affects final part dimensions—especially with technical materials. The reviewer notes PLA is theoretically best here, and that carbon fiber or glass fiber filled filaments can help with dimensional stability.
Bambu Lab’s recommendation for testing motion accuracy was to use PLA-CF, and the reviewer follows that.
Then there’s moisture—another quiet killer of repeatability. In the test, a nylon filament left in open air for one month produced an ugly surface and was almost half a millimeter larger on a small dimension, attributed to micro water drops boiling in the nozzle and pushing extra filament (over-extrusion). The takeaway is straightforward: if you want “maximum accuracy,” your filament condition matters as much as your calibration.
What The Reviewer Tested
The test plan is refreshingly simple and measurable.
Materials and prep:
- Bambu Lab PLA-CF, dried 8 hours at 50°C.
- A large part close to the reviewer’s measurement limit: about 270 mm.
- Smaller parts around 90 mm, placed in different bed positions.
- A hole test part, with Bambu Studio features enabled for circles/holes (the “outer circle contour / hole composition” setting is mentioned).
Measurement tools:
- A vernier caliper that can measure up to 270 mm.

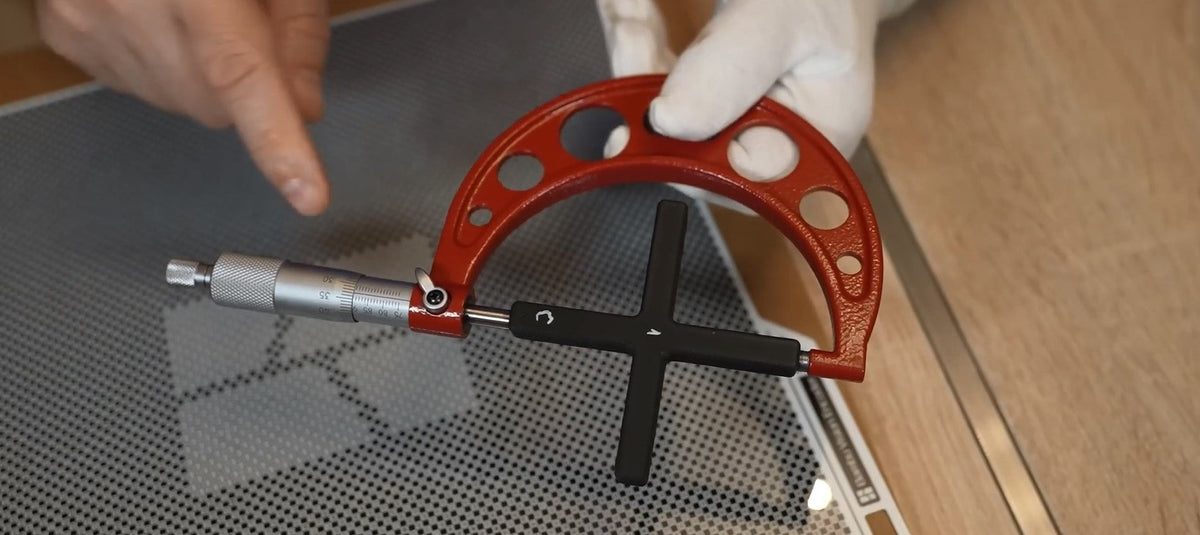

- A micrometer for 75–100 mm dimensions, calibrated with a 75 mm gauge.
- The reviewer also mentions wearing gloves to reduce thermal effects while measuring.
There’s also a practical print note: the reviewer often has bed adhesion issues on the front side because ventilation cold air hits that area and it becomes significantly colder. This is not “vision encoder” related, but it is real-world context for anyone expecting lab-perfect prints.
Bambu Lab Vision Encoder Worth It: How To Use Bambu Lab Vision Encoder
Installation is straightforward:
- Swap the plate out, put the vision encoder in.
- Remove the protection foil.
- Run Motion Accuracy Calibration.
In this test, the calibration takes about 7 minutes. The printer turns off LED lights for better scanning accuracy, and the reviewer mentions it likely asks to close the door.
One nuance: the vision encoder is described as slightly smaller than the full area, so the calibration is only done on the covered surface.
Measured Results: What Changed
This is the part everyone wants, so let’s stick to what is shown.
Large & Small Parts: Dimensional Accuracy (X/Y) Before vs After Calibration
Large part (~270 mm):
- X before calibration: 269.6 mm
- X after calibration: 269.5 mm
- Y before calibration: 269.52 mm
- Y after calibration: 269.5 mm
Smaller parts (~90 mm):
- X before calibration 89.79 mm
- X after calibration 89.81 mm
- Y before calibration: 89.87 mm
- Y after calibration: 89.84 mm
Holes & Circular Accuracy: Hole Size / Fit Before vs After Calibration
Hole fit / circular accuracy:
- The reviewer uses a 22 mm bearing fit as a practical check, and notes that in design they often make holes 0.2 mm bigger for a tight fit.
- In the quick check shown, the reviewer does not experience a meaningful difference before vs after calibration for the hole fit in that example.
- A larger hole measurement example is shown:
- Before calibration: 50.06 mm (X) and 50.09 mm (Y)
- After calibration: 50.03 mm (X) and 50.02 mm (Y)
So… Do You Need It?
Is Bambu Lab Vision Encoder Worth It? The reviewer’s take is basically: Bambu Lab probably won’t love the answer.
In this particular test, the H2S is already very accurate out of the box, so the improvement exists but is hard to measure. The video suggests the vision encoder may make more sense in edge cases, such as:
- A printer that was slightly damaged during shipping but still prints
- Large temperature swings (garage in winter vs hot summer) causing thermal dilation in the printer structure
- Long-term wear (belts stretching unevenly over years)
Also worth noting: the reviewer explicitly calls out that the vision encoder does not compensate filament shrink. Motion calibration and material behavior are two different layers.
Practical Buying Guidance
If you are chasing motion accuracy in X/Y on an H series machine, the Bambu Lab Vision Encoder appears to do something measurable—especially when you compare X vs Y consistency and when you care about large dimensions.
If your goal is better surface quality, Z improvements, or “fix my slicer mistakes,” this is not the right tool.
And if you are trying to “buy accuracy,” remember the boring stuff still wins: dry filament, stable measurement habits, and consistent environment. Results vary by material, moisture, temperature, firmware, batch, and installation.
