Bambu Lab X2D Vision Encoder for XY Accuracy Calibration

Name: Bambu Lab X2D Vision Encoder for XY Accuracy Calibration
Brand: Bambu Lab
SKU: Vision Encoder-X2D-Bambu-1
Price: 79.99 USD
Availability: InStock

Bambu Lab X2D Vision Encoder for XY Accuracy Calibration

Helps correct XY motion accuracy drift caused by long-term use, transport, or belt-tension changes.

Correct XY Accuracy Drift

Helps correct XY accuracy drift after transport or belt-tension changes. If a belt is loose, adjust it first, then recalibrate.

Quick Accuracy Calibration

Run a quick calibration with the plate to measure and compensate for XY motion errors—without repeated trial prints.

$79.99

Shipping calculated at checkout.

2 in stock

The Bambu Lab X2D Vision Encoder is an official optical calibration plate that helps correct XY motion inaccuracies caused by mechanical variation and long-term use. Place it on the room-temperature heatbed and run motion accuracy calibration to compensate for changes over time, including those following relocation or belt-tension adjustments. Its dense optical marker grid provides a precise reference for calibration, helping maintain consistent motion accuracy across the printing area. It is a calibration accessory, not a build plate; remove and store it after use.

90-Day Warranty
30-Day Return
7-Day Delivery

Place your order today

28 Oct | Estimated Delivery

🚚 More information regarding shipping & delivery

Bambu Lab X2D Vision Encoder for XY Accuracy Calibration Overview

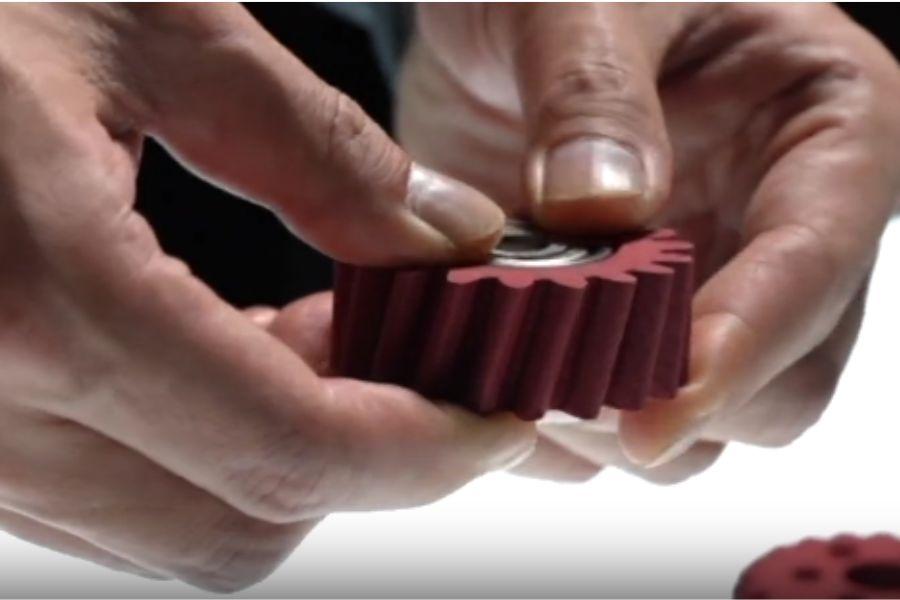

Hand press-fit insertion: metal component seated snugly into a 3D-printed part (tight tolerance fit)

Shipping Damage Support

If your Vision Encoder arrives with damaged outer packaging, contact Call3D to arrange a return or replacement. We’ll help resolve the issue so you can buy with confidence.

Product Specification

Product Type: Optical reference plate for XY motion accuracy calibration
Compatibility: Bambu Lab X2D — select the X2D version
Optical Markers: 10⁴ encode markers
Optical Measurement Resolution: 5 μm
Calibrated Motion Accuracy: Below 50 μm, according to Bambu Lab; this is a motion-accuracy specification, not a guarantee of printed-part dimensions
Calibration Time: Approximately 5 minutes, according to Bambu Lab; actual duration may vary
Materials: Metal and plastic
Color: Black and white
Packaging Dimensions: 393 × 380 × 15 mm (15.5 × 15.0 × 0.6 in)
Packaging Weight: 0.73 kg (1.61 lb)

Package Includes

Vision Encoder *1

Requirements & Installation Notes

Correct Version: Use the X2D Vision Encoder for the Bambu Lab X2D
Protective Film: Remove the transparent protective film before first use
Camera Check: Ensure the toolhead camera works properly and has no camera-related HMS errors; clean the lens if needed
Clean Surfaces: Remove debris from the heatbed and keep the plate clean, with all grid patterns clearly visible
Room-Temperature Heatbed: Let the heatbed cool to room temperature before placing the plate and running motion accuracy calibration
After Calibration: Remove and store the plate; do not use it as a build plate
Recalibration: For high-precision work, Bambu Lab recommends recalibrating every two weeks
Official Calibration Guide: View Bambu Lab’s Official Motion Accuracy Calibration Guide (published under the H2 manual; screen layouts may differ on X2D)

Real-World Install & Test of Bambu Lab X2D Vision Encoder for XY Accuracy Calibration

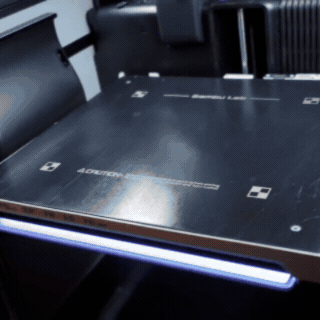

Placing the Bambu Vision Encoder calibration plate inside a Bambu Lab H2D printer for setup and calibration

X2D Vision Encoder Review: Real Gains in XY Fit

See what the vision encoder calibration changes on X2D and what it does not. Focused on fit, alignment, and practical limits.

Watch Full Unbox & Install

External AMS Pro with a Bambu Lab X2D setup, ready for quick material switching

Do You Need a Vision Encoder for Bambu X2D

A quick decision guide for X2D owners who print functional parts. Covers when calibration is worth running and when it is overkil

Watch Full Unbox & Install

Bambu Vision Encoder test — measuring part precision error and dimensional deviation of printed test parts with a digital caliper

Bambu Vision Encoder Worth It: X2D Perspective

A measured take on whether the upgrade is worth buying for X2D. Includes the most common use cases and the key setup requirements.

Watch Full Unbox & Install

Explore Precision Upgrades for Your Bambu Lab

Frequently Asked Questions About Bambu Lab X2D Vision Encoder for XY Accuracy Calibration

What does the X2D Vision Encoder actually improve?

It helps Bambu Studio create an XY compensation profile for motion accuracy calibration. In practical terms, it can improve fit, alignment, and hole geometry consistency on functional parts, especially larger prints where small XY deviations accumulate. It does not directly fix surface quality, filament issues, slicer settings, or mechanical problems that need maintenance.

Why did I not see an immediate difference after calibration?

The result can be subtle right after calibration. The Vision Encoder is most useful for maintaining XY consistency as belt tension, wear, transport, or motion-system condition changes over time. For a fair check, compare repeat prints, assemblies, holes, or larger functional parts instead of expecting a visible surface-quality change.

How do I use the Vision Encoder on my X2D?

Remove the protective film, clean the toolhead camera and heatbed, and let the heatbed cool to room temperature. Remove the build plate, then place the X2D Vision Encoder directly on the heatbed as prompted. On the printer screen, open Calibration > Motion Accuracy Calibration and follow the instructions. After calibration succeeds, check that Motion Accuracy Enhancement is enabled, then remove and store the encoder before printing. Menu names may vary with firmware.

Is the Vision Encoder worth buying for my X2D?

It is most useful if you need consistent dimensional accuracy for large functional parts, fitted assemblies, or precision work. It also makes recalibration convenient after relocation, belt-tension adjustments, or long-term use. If your printer is already in good condition, the difference may be subtle or not visible. Treat it as a motion-calibration tool, not a guaranteed improvement to every print’s appearance.
