Introduction
If you own a Bambu Lab P2S 3D printer, clogs are one of the most common issues you might face—but you don’t need to rush into full disassembly to fix them. This guide focuses on safe, effective P2S unclog methods for both the extruder and hotend, using basic tools and minimal effort. Whether you’re a new user or a seasoned printer enthusiast, these steps will help you resolve clogs and keep your P2S running reliably.
The Author : Big Bro
Big Bro is a renowned content creator and technical blogger in China’s 3D printing sector. He is primarily active on short-video platforms, focusing on practical 3D printing tutorials, equipment modifications, consumable reviews, and peripheral product development—with particular expertise in Bambu Lab printer-related technologies. He has garnered a strong following among 3D printing enthusiasts and users alike.
💡 Tools You'll Need
- An Allen wrench set
- Wire cutters
- A spare nozzle (highly recommended for quick replacements during P2S unclog tasks)
Understanding Why P2S Clogs Happen
Most filaments are labeled 1.75mm, but some low-quality products may deviate from this standard—ranging from 1.6mm (too thin) to 2.0mm (too thick). Thin filaments fail to grip the extruder properly, leading to insufficient feeding force and "extruder error" messages. Overly thick filaments, on the other hand, get stuck in the extruder or hotend, causing the P2S clog issue you’re facing.
Step 1: Determine the P2S Clog Location
😯Before starting the P2S unclog process, identify whether the clog is in the hotend or the extruder itself—this saves time and avoids unnecessary steps:
Before disassembling anything, you need to figure out whether the clog is in the hot end or the extruder itself:
- Cut the filament.
- Press down fully on the relevant levers and remove the silicone sleeve.

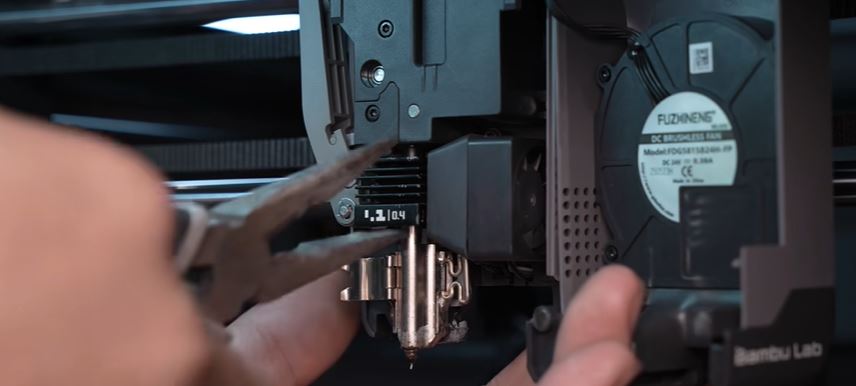

- If it's stuck, heat up the hot end first, then use pliers to remove it.
Navigate to the printer’s menu, select "Extrude," and attempt to feed filament.
- If filament comes out: The clog is in the hotend (no extruder disassembly needed for this P2S unclog).
- If no filament comes out: The clog is in the extruder—proceed to the next steps.
Step 2: Fix an Extruder Clog (P2S Unclog Process)
2.1 Remove the PTFE Tube
- If you have an AMS, press the release mechanism and pull the tube gently.
- If not, cut the filament first, then press the release mechanism while pulling the tube (it’s normal if the tube gets stuck partway).
- Trim the filament to leave a small extra length—this simplifies reinsertion after the P2S unclog.
2.2 Access the Clogged Area
- Once the clog is cleared, reverse the disassembly steps to put your P2S back together:
- Tighten the screws (main first, then the smaller one) to secure the component.
- Reinsert the PTFE tube firmly (ensure the release mechanism is pressed while inserting).
- Reload the trimmed filament—your P2S is now ready to print!
2.3 Clear the P2S Clog
- Before starting the P2S unclog process, identify whether the clog is in the hotend or the extruder itself—this saves time and avoids unnecessary steps:
- Cut the filament gently with wire cutters.
- Press down fully on the relevant levers and remove the silicone sleeve (if stuck, heat the hotend first, then use pliers to loosen it).
- Navigate to the printer’s menu, select "Extrude," and attempt to feed filament.
- If filament comes out: The clog is in the hotend (no extruder disassembly needed for this P2S unclog).
- If no filament comes out: The clog is in the extruder—proceed to the next steps.
Step 3: Reassemble After P2S Unclog
Once the clog is cleared, reverse the disassembly steps to put your P2S back together:
- Tighten the screws (main first, then the smaller one) to secure the component.
- Reinsert the PTFE tube firmly (ensure the release mechanism is pressed while inserting).
- Reload the trimmed filament—your P2S is now ready to print!
Final Thoughts on P2S Unclog
The Bambu Lab P2S is designed for easy maintenance, so the P2S unclog process doesn’t require advanced technical skills. Always start with this simple, no-full-disassembly method before attempting more complex fixes—this reduces the risk of damage and saves time. Keep a spare nozzle on hand to speed up the P2S unclog process if the hotend is clogged, and remember to check filament quality to prevent future clogs.We also have solutions for heat creep in Bambu Lab P2S and P1S printers—stay tuned for more maintenance guides to keep your 3D printers in top shape!
