Bambu Lab Vision Encoder for H2D/H2S/H2C

• The Large-Format Cumulative Error: On small prints, a 0.05 mm XY deviation is barely noticeable. However, on large functional parts up to 300x300 mm (11.8x11.8 in), this minor positional error accumulates across the build, causing interlocking joints, bolt holes, and guide rails to completely misalign.

• Restore Precision After Shifts: 3D printer calibration isn't permanent. Your accuracy can drop due to:
  - Physical movement or machine transport jarring the frame alignment.
  - Belt tension changes (stretching/wear over long-term use).
  - Ambient temperature fluctuations causing micro-expansion of structural parts.The Vision Encoder recalibrates the motion profile to instantly recover this lost precision.

• Repeatable Optical Reference: The Bambu Lab Vision Encoder provides an absolute physical reference pattern. The printer’s camera scans it to measure micro-deviations in XY movement with sub-pixel precision.

• Eliminate Cross-Printer Variance: Essential if you operate multiple H2 series printers. It aligns their motion profiles so parts printed on different machines mate together seamlessly.
  Note: While it corrects motion drift, print quality is still affected by wet filament, material shrinkage, or incorrect extrusion multipliers.

• Recover Drift from Environmental Shifts: Restores and improves XY accuracy degraded by printer relocation/transport, belt tension changes, or ambient temperature fluctuations.
• Essential for Large-Format Prints: Crucial for large functional parts up to 300x300 mm (11.8x11.8 in), where minor positional errors accumulate over distance and cause assembly failures.
• Eliminate Assembly Frustration: Improves cross-printer consistency and dimensional accuracy for multi-part functional assemblies (results vary).
• Save Time & Filament: Stops tedious trial-and-error manual print tests by automating XY compensation in Bambu Studio.
• H2 Series Engine Compatibility: Fully compatible with Bambu Lab H2D motion calibration
• Calibration Tool Only: Not a build plate and must not be used as a printing surface.
• Optimal Setup Required: Requires stable ambient lighting, a clean camera lens, and the official Motion Accuracy Calibration workflow.

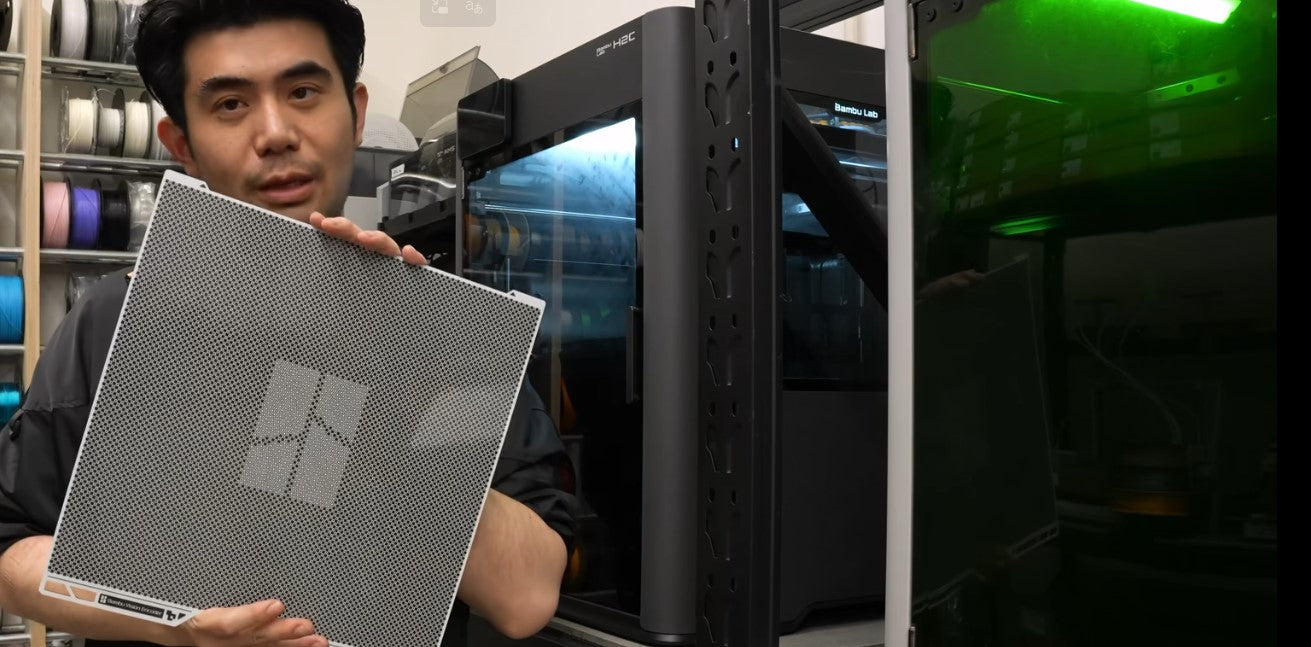

• Product type: XY motion accuracy calibration tool (vision encoder plate)
• Compatibility: Bambu Lab H2D / H2S / H2C
• Intended workflow: Bambu Studio Vision Encoder / Motion Accuracy Calibration
• Notes: not for printing; keep the marker surface clean and store flat

Usage tips

1. Machine performance characteristics inevitably evolve due to temporal factors, operational usage patterns, and environmental influences. This process manifests through mechanisms including:

• Ambient temperature fluctuations

• Structural micro-deformations from operational vibration or relocation

• Stress relaxation in housing materials

Consequently, calibration efficacy exhibits progressive attenuation. The degradation rate correlates directly with environmental severity and usage intensity parameters. For applications requiring high-precision maintenance, we recommend implementing biweekly calibration protocols to ensure sustained measurement accuracy.

2. Bambu Lab Vision Encoder is only used for motion accuracy calibration and must not be used as build plate. Please remove and store the Vision Encoder properly after calibration.

3. Before calibrating with Bambu Lab Vision Encoder, please ensure the following:

• Please remove the transparent plastic protective film from the surface of the Vision Encoder before use.

• Ensure the toolhead camera is functioning properly, with no HMS errors (e.g., dirty lenses).

• Clear all debris from the heatbed.

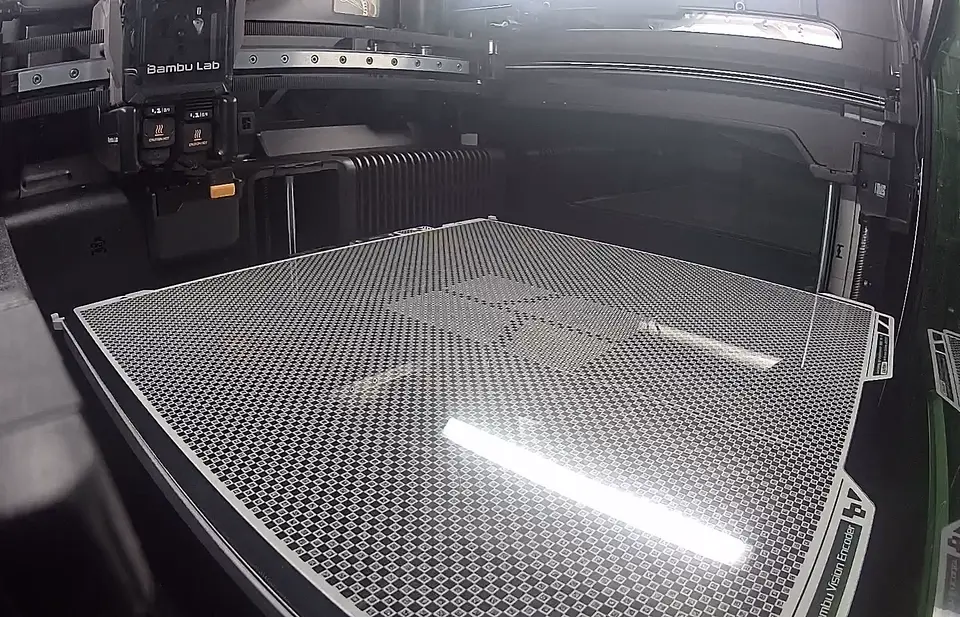

• Ensure the surface of Vision Encoder is clean, with all grid patterns clearly visible.

• Before calibration, ensure that the heatbed is at room temperature. Avoid placing the Vision Encoder on the heatbed when it is hot to prevent errors caused by thermal expansion.
