Bambu TPU Feed Assist Module for Flexible Filament
Bambu TPU Feed Assist Module for Flexible Filament
Automatic Feed Assist
Feeds filament when tension rises, reducing pull on the printer’s extruder.
Stable TPU 95A Feeding
Helps maintain continuous TPU 95A feeding and reduce buckling or jams.
27 in stock
The Bambu TPU Feed Assist Module for Flexible Filament is an official Bambu Lab kit designed for TPU 95A. It works as a remote auxiliary feeder, helping move flexible filament toward the printer while reducing the pulling force on the extruder.
When filament tension rises, the module feeds a small amount of filament toward the printer. This assisted feeding helps limit buckling and jams when printing with TPU 95A. It supports the filament feed path, but printing results still depend on material condition and printer setup.
An external filament spool is required. AMS automatic loading is not supported, and the module’s housing and frame must be 3D printed. Plan for these requirements before adding the kit to your printing setup.
Compatible printers follow the official list: H2 Series, X1 Series, P1 Series, P2S, and X2D, excluding the X2D remote extruder. Before printing, check filament dryness, routing, calibration, nozzle condition, and printer setup, as each can affect the final result.
ETA:
📦 Download 3D Model (STL)
Some components of this product require 3D printing.
- 90-Day Warranty
- 30-Day Return
- 7-Day Delivery
TPU Feed Assist Module Overview
Support for Missing Parts and Kit Issues

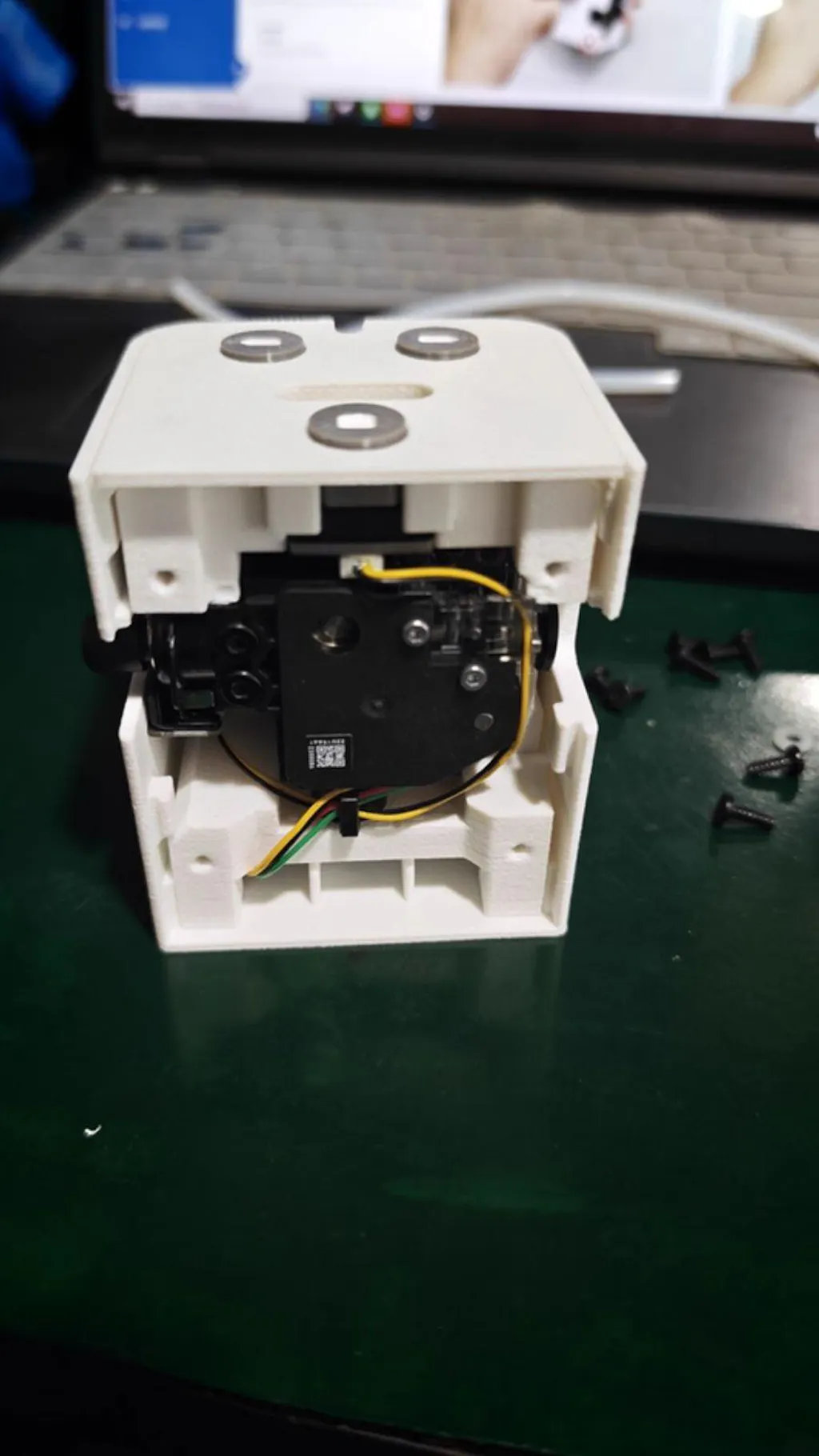

This product is supplied as a component kit rather than a fully assembled unit. We have seen occasional cases where factory-packed kits arrived with missing screws. If your kit is incomplete, contact us and we will provide the missing screws. If you discover another confirmed product issue, we can help arrange a replacement as appropriate. This gives you a clear, practical solution if a packing or product problem occurs.
Product Specification
- Product Type: TPU Feed Assist Module kit
- Supported Hardness: TPU 95A, the official rating
- Official Compatibility: Bambu Lab H2 Series / X1 Series / P1 Series / P2S / X2D
- X2D Limitation: Not compatible with the X2D remote extruder
- Materials: Plastic and metal
- Color: Black
- Packaging Size: 105 × 150 × 133 mm (4.1 × 5.9 × 5.2 in)
- Packaging Weight: 46.9 g (1.7 oz)
- Assembly: User must 3D print the housing and mounting frame

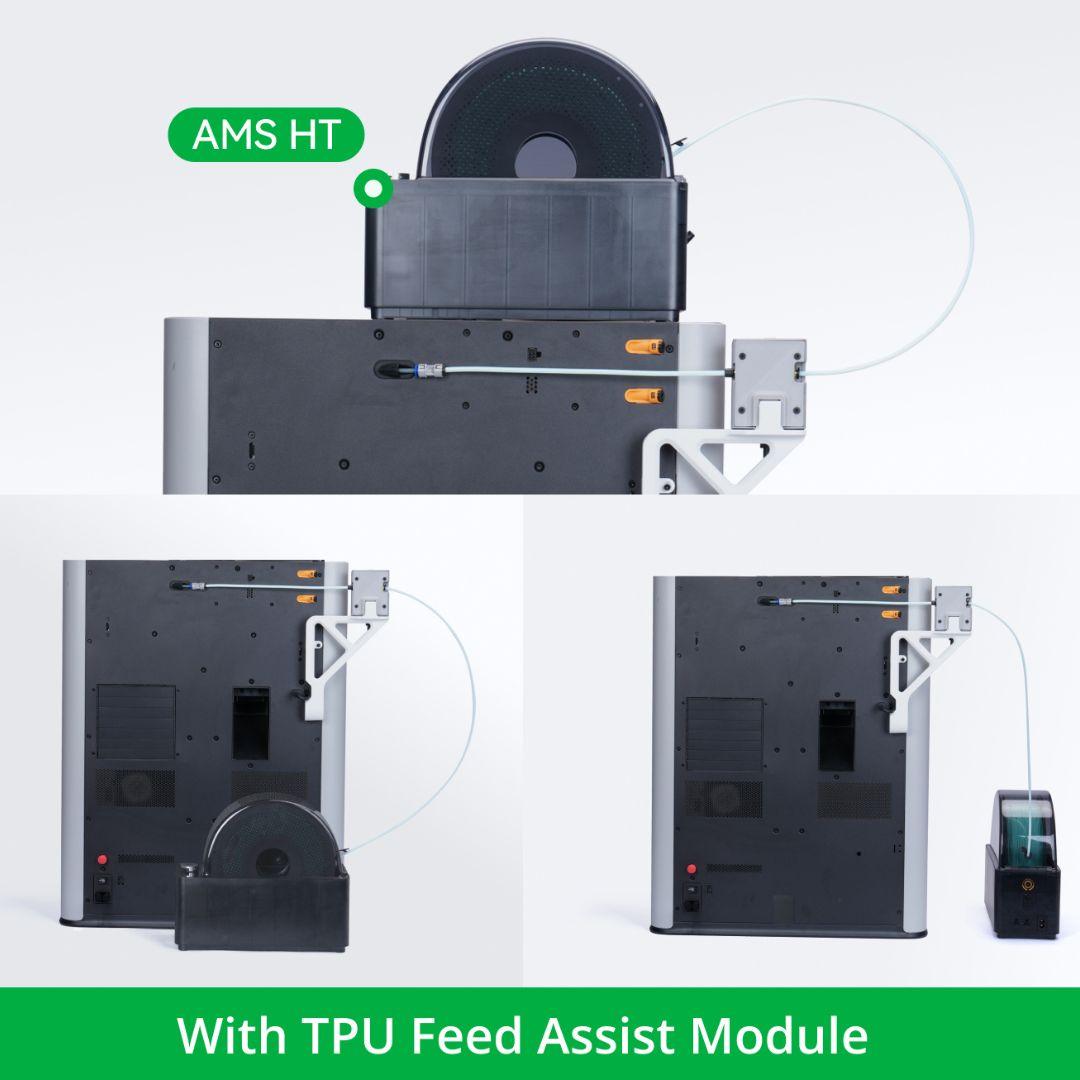

- External Feeding: Requires an external feeding system, such as AMS HT or a filament dryer with spool rotation
- AMS Operation: Automatic loading and unloading are not supported

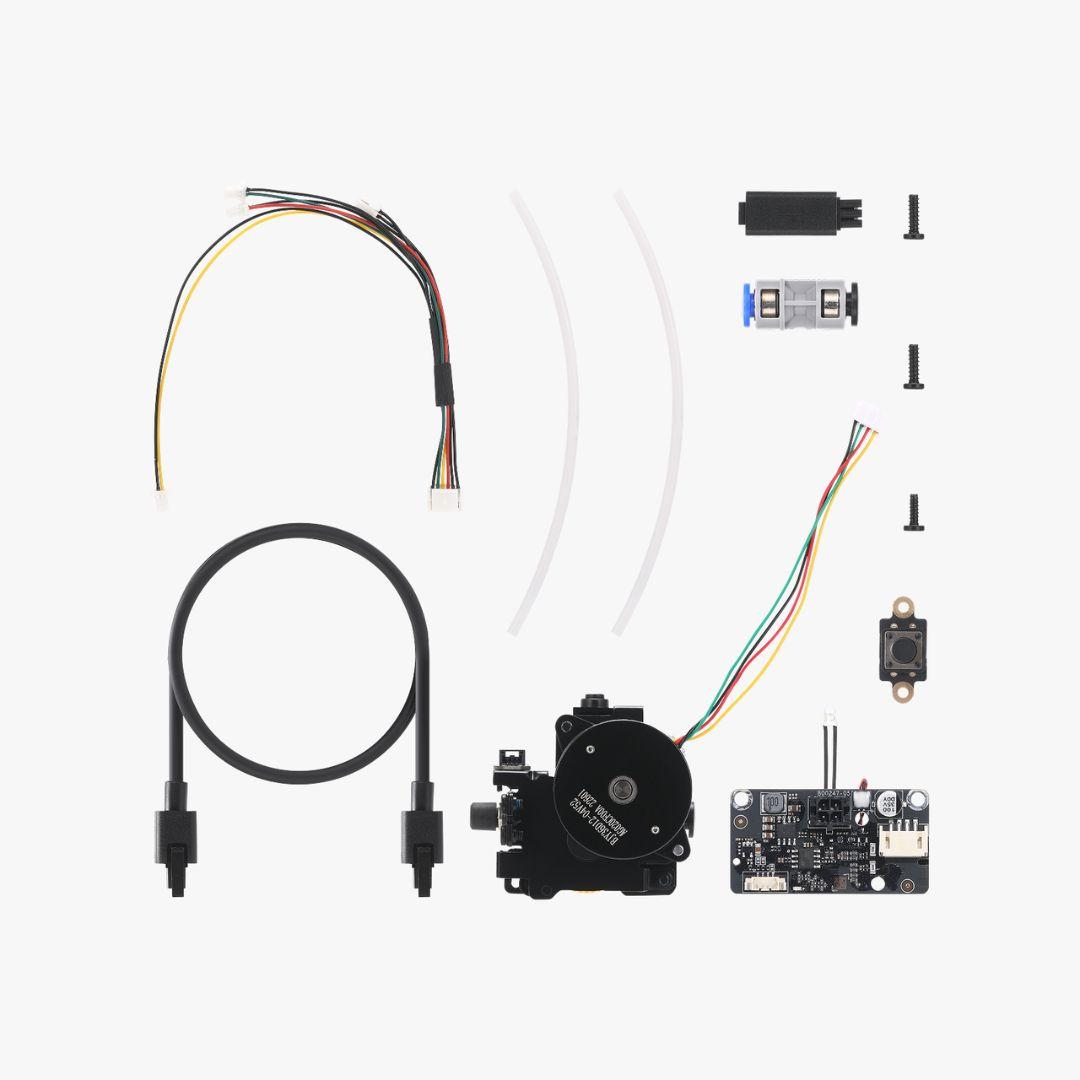

Package Includes
3 x Button Switch Plates
1 x Extruder Component
1 x PTFE Tube, 160 mm
1 x PTFE Tube, 275 mm
1 x Single PTFE Tube Pass Connector
1 x 4 PIN to 6 PIN Connector
1 x Main Control Board
1 x 4-Pin Cable
1 x 1-to-4 Cable
14 x BT2.6x8 Screws
6 x BT3x10, ST3x12 Screws
Not included: 3D printed housing/frame
Requirements & Installation Notes
- Official Compatibility: Bambu Lab H2 Series / X1 Series / P1 Series / P2S / X2D
- X2D Limitation: The kit cannot be installed on the X2D remote extruder
- A Series Limitation: Not suitable for the A1, A1 mini, or A2L

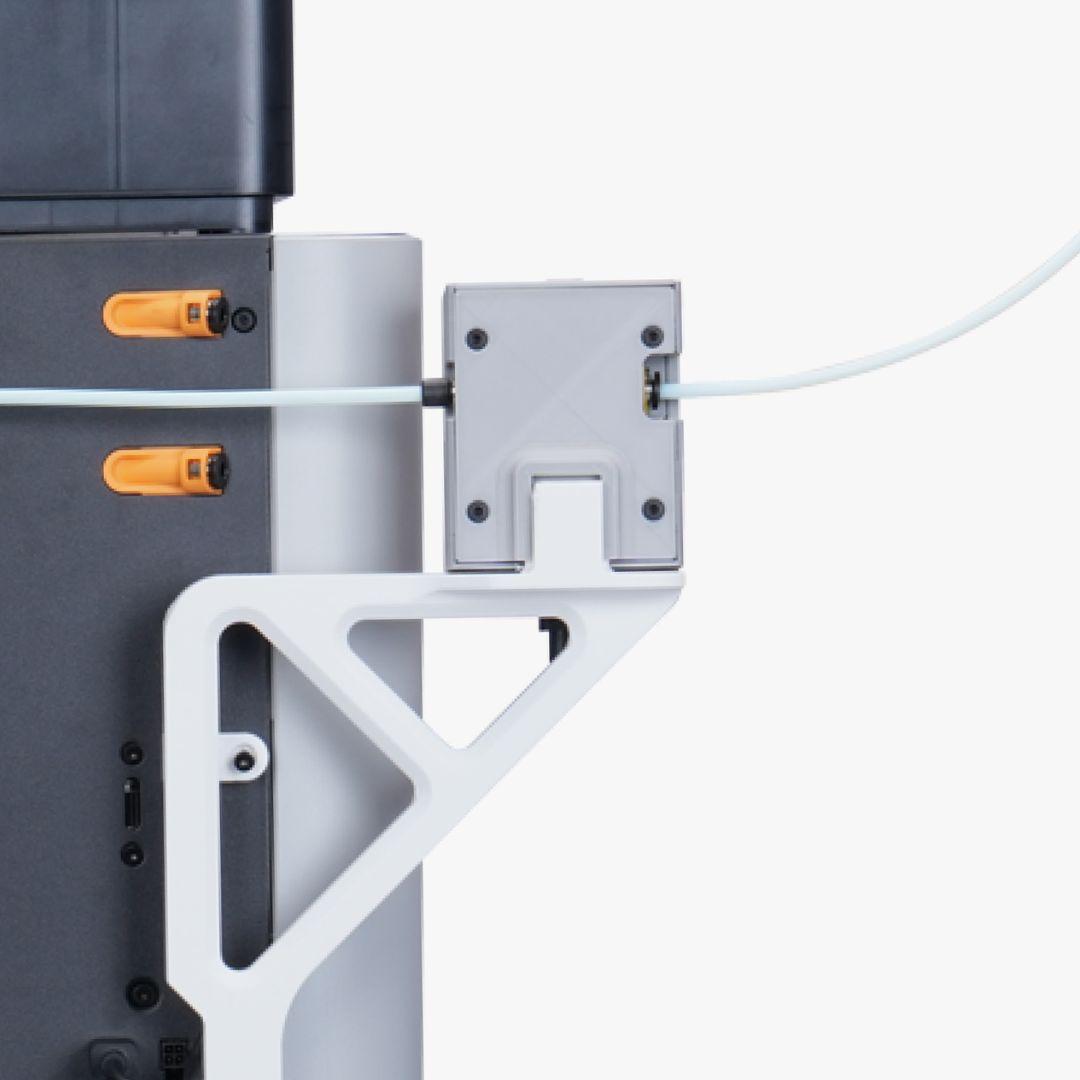

- User-Printed Parts Required: Both the enclosure and the mounting bracket must be 3D printed before installation
- External Spool Required: AMS automatic loading and unloading are not supported
- View the Complete TPU Feed Assist Module Setup Guide → https://www.call-3d.com/blogs/upgrades/tpu-assist-module-tips

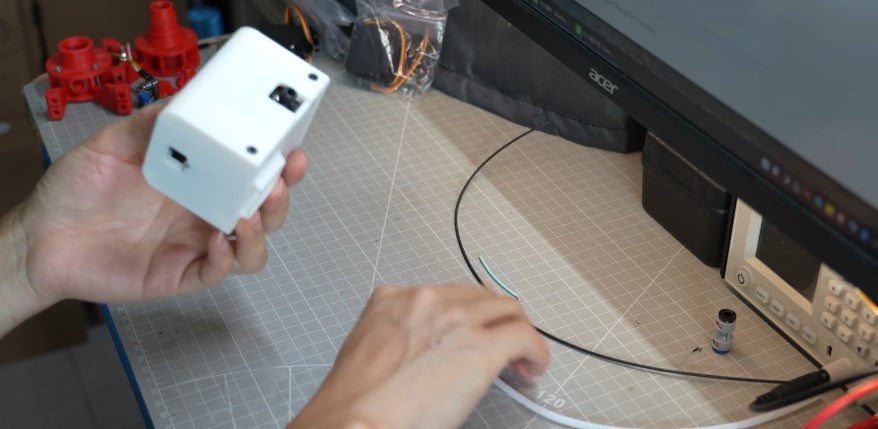

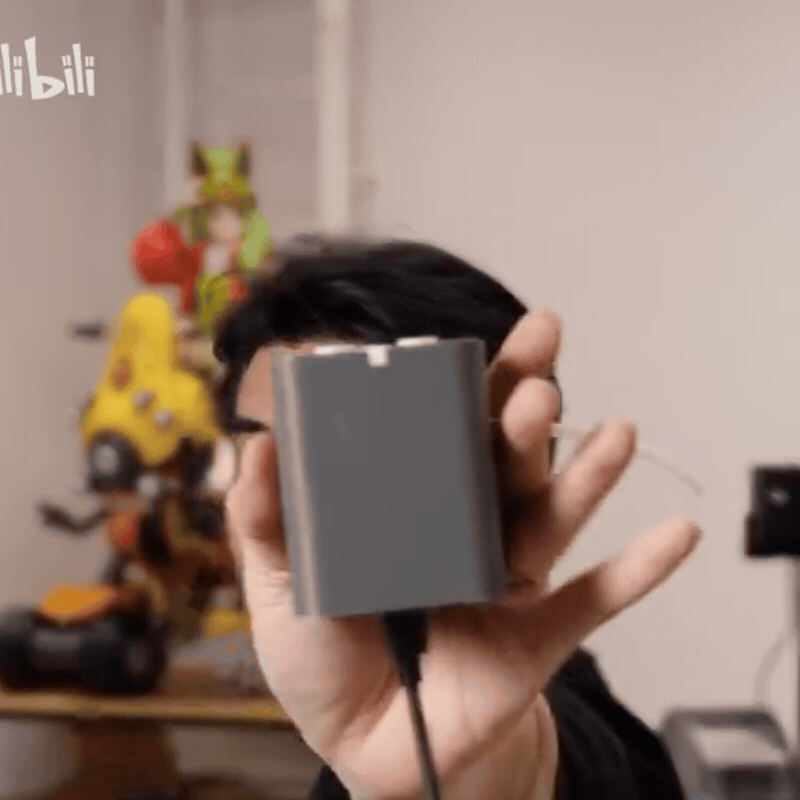

Real-World Install & Test of TPU Feed Assist Module

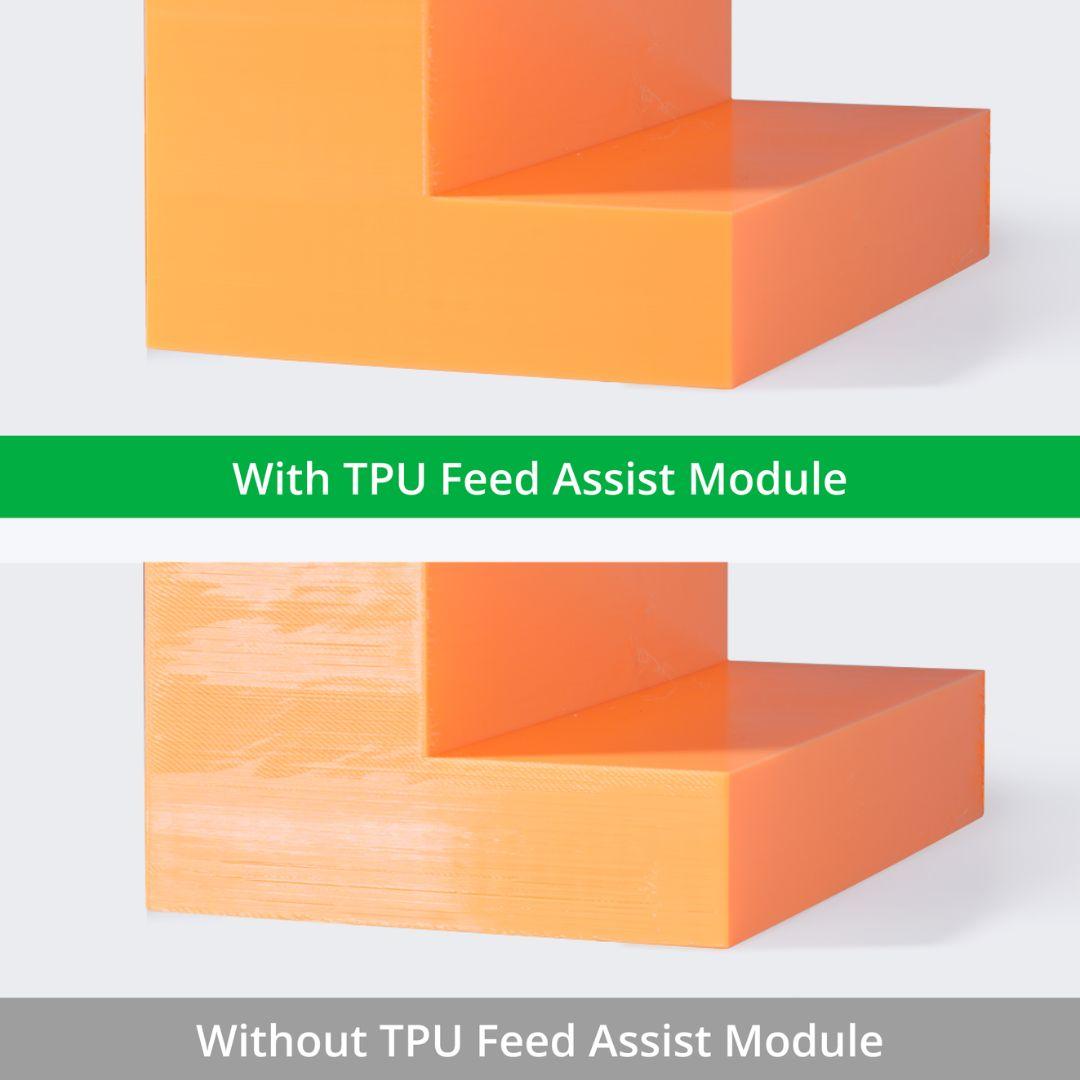

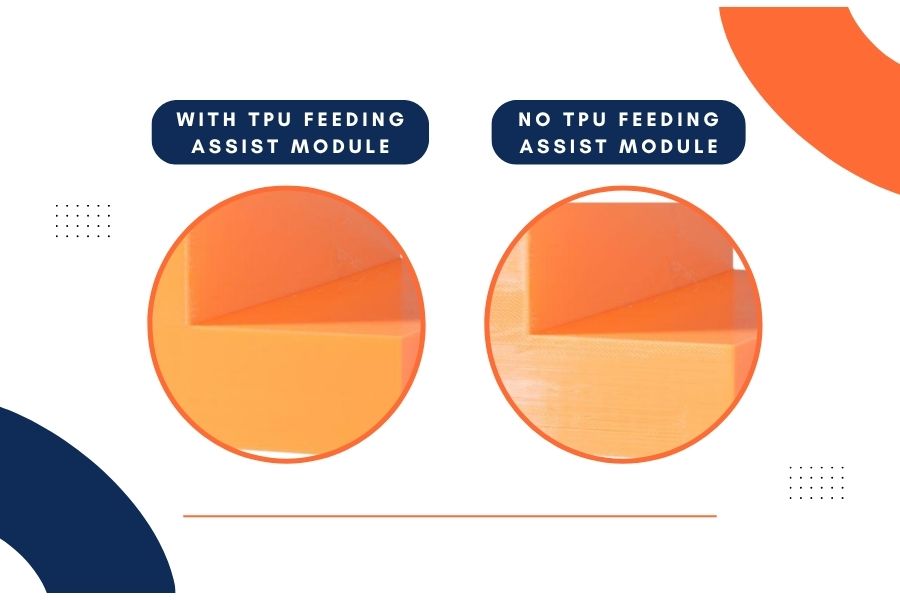

TPU Feed Assist Module Review: Did the Prints Change?
Official hardness stays TPU 95A. Big Bro still compared long prints with and without the module — and “better” is not one simple result.
Bambu X2D: What Should You Buy First?
Frequent TPU does not send every owner to the same next part. Check the order before this module becomes an early purchase.
TPU Feed Assist Module Setup: The Step That Fails
The module can be installed and still fail calibration. The usual miss happens before the first TPU print — the guide shows which step.
Explore Precision Upgrades for Your Bambu Lab
Explore Precision Upgrades for Your Bambu Lab
Explore Precision Upgrades for Your Bambu Lab
Explore Precision Upgrades for Your Bambu Lab
Frequently Asked Questions About TPU Feed Assist Module
Does the Bambu TPU Feed Assist Module work with AMS?
AMS automatic loading and unloading are not supported. Use an external spool holder. AMS HT outlet routing may help keep TPU dry where applicable, but filament still requires manual loading and unloading.
Is the TPU Feed Assist Module limited to TPU 95A, and can it feed PEBA?
TPU 95A is the official supported hardness. Softer grades are outside that official rating. The internal filament tension is fixed and cannot be reduced, so a softer filament may flatten or jam in the feed path. PEBA cannot be judged by the material name alone. If a filament flattens as it enters the module, stop and do not use it.
Can the Bambu TPU Feed Assist Module be used with third-party 3D printers?
In theory, yes. The module does not communicate with the printer and only requires a suitable power connection, so it may operate independently with a third-party machine. However, this is not an officially supported configuration and may require a custom power solution, mounting bracket, and filament path. In practice, there is usually little reason to adapt this Bambu Lab kit to another brand because other TPU feeding solutions may be easier to install and better suited to third-party printers.
Will installing the TPU Feed Assist Module cause the original PTFE tube to bend or become obstructed?
Based on an actual installation test, the module does not obstruct the main filament inlet tube or create an obvious kink. The tube only shifts slightly outward while remaining within the normal swivel range of the pneumatic fitting. After installation, confirm that the PTFE tube moves freely and is not sharply bent, pinched, or rubbing against nearby parts.
Why Shop with Call3D ?
Buy with confidence from an experienced 3D printing team offering carefully selected products, clear compatibility guidance, responsive support, and transparent order fulfillment.
Store FAQ
What Should I Buy from Call3D?
Call3D is particularly valuable when you are looking for:
- Carefully selected third-party accessories, mods, and upgrades for Bambu Lab printers;
- Compatibility-sensitive parts that require clearer model, version, or installation guidance;
- Specialized solutions that may be difficult to identify on general marketplaces;
- Newly released or locally unavailable Bambu Lab products;
- Multiple accessories that can be combined into one order.
Every product we list is selected for a clear functional purpose, with compatibility, installation requirements, and known limitations reviewed before publication. Our goal is to help customers choose the right solution—not simply offer the largest possible catalog.
Why Call3D over a Marketplace?
General marketplaces may offer a large number of similar-looking products from different sellers, making it difficult to evaluate compatibility, product quality, and after-sales responsibility.
Call3D operates as a specialist curated store. We review a product’s purpose, compatibility, installation requirements, and available technical information before listing it. If customers need help before ordering or encounter a problem afterward, they can contact the same team that selected and documented the product.
We focus on long-term customer relationships, clear communication, and responsible after-sales support rather than a one-time transaction.
How can I track my order?
You will receive a YunExpress order number immediately after your order ships.Use this number to track the package from our warehouse to your destination country.
For the following countries, you will also receive a corresponding local tracking number.Please use the official website of the local carrier for real-time delivery updates:
- United States: USPS
- Germany & Netherlands: DHL
- United Kingdom: Evri
- Spain: CTT
- France: Colis Privé
For all other regions: Only a YunExpress tracking number will be provided (no local carrier tracking available).
Do you ship to my country?
Call3D currently serves customers in 36 countries and regions:
European Union: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czechia, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, and Sweden.
Other destinations: Australia, Canada, Israel, New Zealand, Norway, Singapore, Switzerland, the United Kingdom, and the United States.
If your destination is not listed, please contact Call3D before placing an order. We will assess shipping availability, customs requirements, taxes, and applicable local regulations, then confirm whether we can serve your location. Delivery to an unlisted destination is not guaranteed until confirmed by our team.
What is your return policy?
Eligible unused items in their original condition and packaging may be returned within 30 days of delivery. Please contact Call3D for approval before returning an item. Refunds are issued to the original payment method after inspection; return shipping costs apply.
Duties, VAT & Sales Tax
Call3D product prices include applicable import duties. For orders delivered to the European Union, applicable VAT is also included in the displayed price. Customers should not normally be required to pay additional import duties or VAT upon delivery.
For orders delivered within the United States, applicable state and local sales tax is calculated based on the shipping address and displayed at checkout before payment. Call3D collects sales tax only in jurisdictions where it is required to do so under applicable tax rules. If no sales tax is shown at checkout, Call3D is not collecting sales tax for that order.
If you receive an unexpected request for import duties or VAT, please contact Call3D Support before making an additional payment.
Call3D Store & Service Reviews
-
I’ve known Enderwick since 2014 and worked alongside him for many years. With over a decade in the industry, he and his team bring an extremely high level of expertise.He has built an enormous 3D printing community here in China and is always coming out with new solutions—each one never fails to impress me.
Daniel O'ConnorDeputy Vice President of TCT Magazine -
When EP invited me to Shenzhen back in 2019, I was absolutely blown away by the hardware innovation coming out of China. Just one year later, Bambu Lab burst onto the scene—and their solutions have grown right alongside Bambu, evolving from the very beginning to where they are today.
Chris ConneryVP for Global Analysis at CONTEXT -
The support offered after i wrote about a defective product was nothing short of exemplary, i applaud Call3D and its support team who fixed my problem swiftly, and made sure to take notice!
Tommaso PasqualiOperational Quality Sterile Lead -
Decent and helpful staff - customer service is outstanding. Secure payment and fast shipping. The items are of great quality. Highly recommended!
Oliver FodorTechnical Manager -
Bought a ventilation system but changed my mind last minute. I thought returns would be a huge hassle, but they told me there’s a return warehouse in Houston only about a 10-minute drive from where I live in Missouri City. Drove over and returned it super easily. Super convenient return process, great experience overall!
RayRobertProject manager -
Found this shop on Reddit, chatted with a real person about the P2S filter I needed. Asked if they could ship to SG, they checked and made it happen! Super happy because this filter is basically impossible to find locally and always out of stock everywhere else. Fast, friendly, and solved my problem perfectly. Will buy again!
Ok_Government_1125Hobbyist in Singapore
- 5 stars: 3 (75%)
- 4 stars: 1 (25%)
- 3 stars: 0 (0%)
- 2 stars: 0 (0%)
- 1 star: 0 (0%)
Great stuff! It really made me experience the joy of spending money again… and I’m not even mad about it!
Works great, really solid—this is a fantastic accessory. Would be even better if it could support both left and right hot ends working together in future updates.

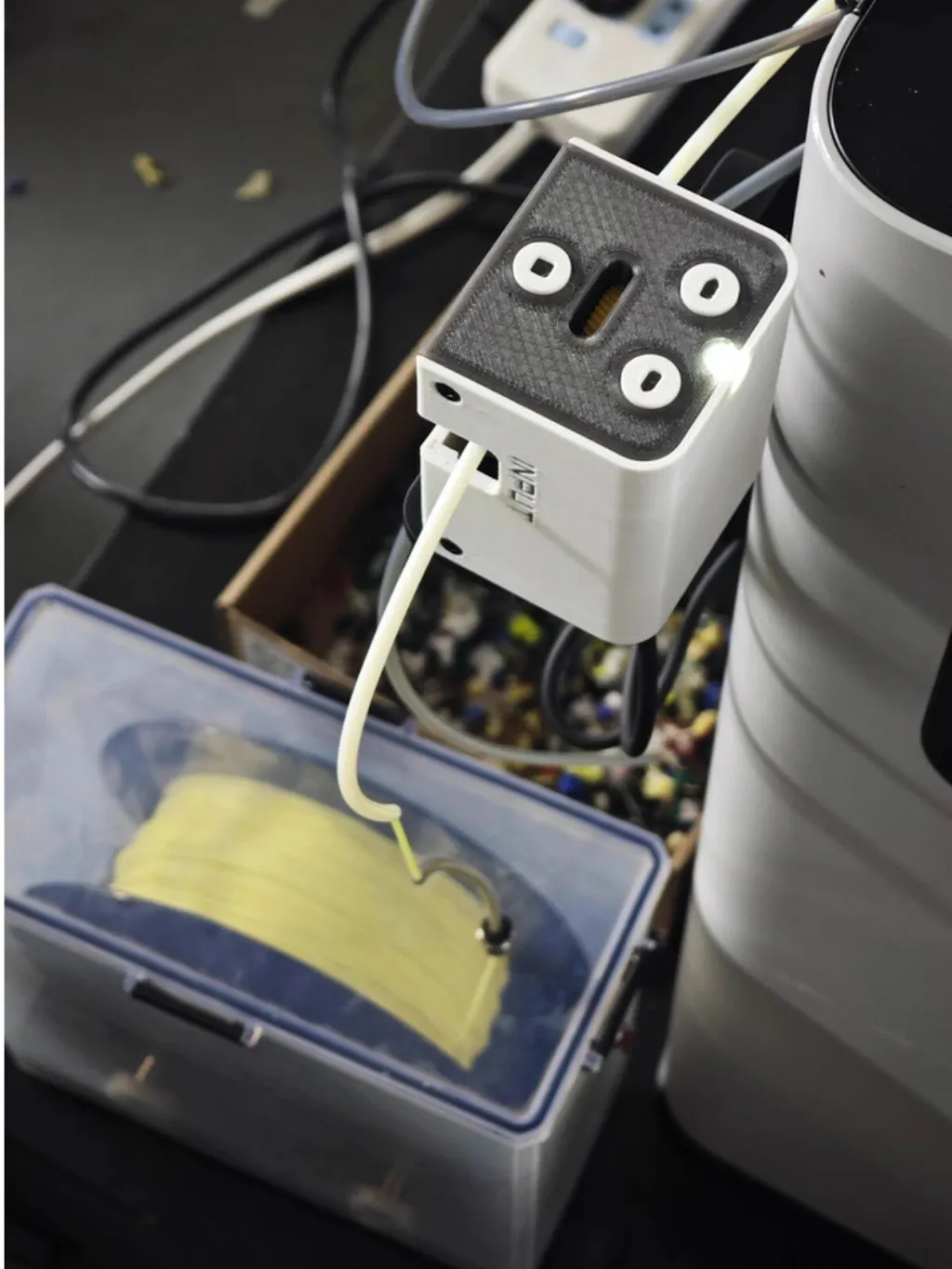

Pretty good! Solves the big pain point of not being able to print TPU with a closed top. Tested 70A as well (not recommended), and paired with a TPU high-flow nozzle, it’s super stable.
